Tri Planar Geonet Composite With Geotextile
Quantity
Inquiry

Tri Planar Geonet Composite With Geotextile

    Description

    Tri Planar Geonet Composite With Geotextile are made of a unique tri-dmension geonet adhibited geotextile on both sides. it has the property of geotextile (filtration function) and geonet (drainage and protection).

    Description of Tri Planar Geonet Composite With Geotextile

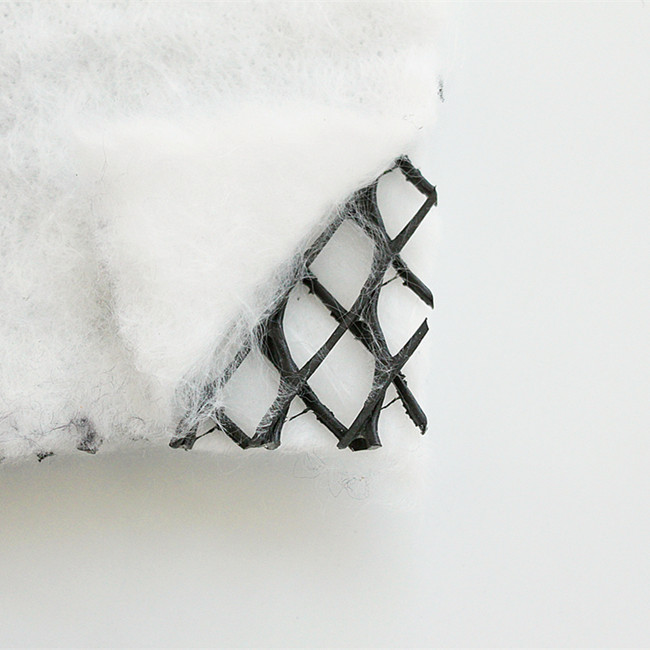

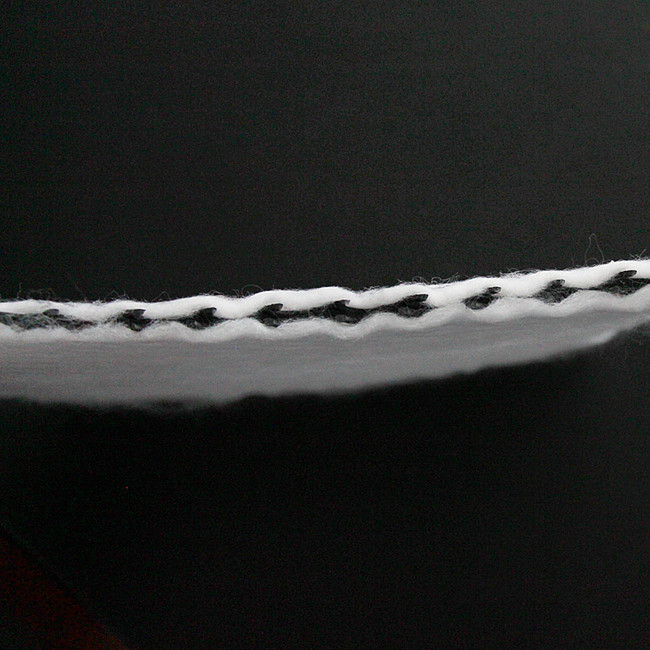

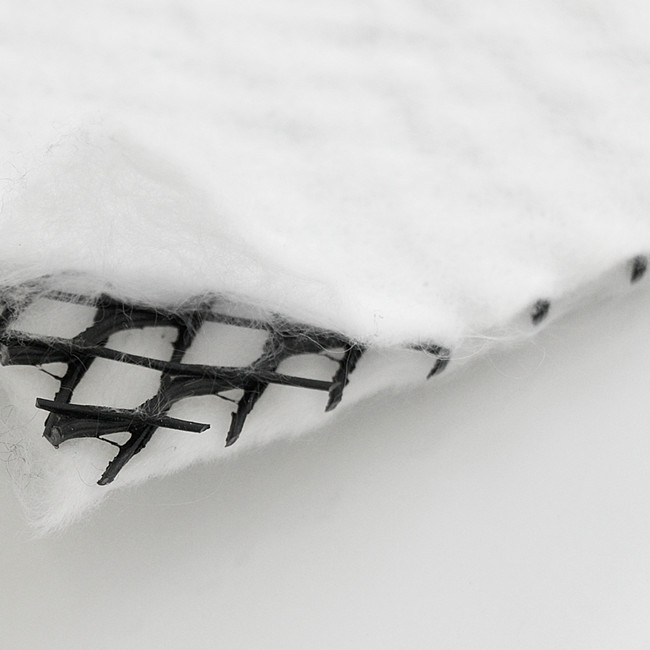

    Tri Planar Geonet Composite With Geotextile is made of a unique tri-dimension geonet adhibited geotextile on both sides. It has the property of geotextile (filtration function) and geonet (drainage and protection) and provide a function system "filtration-drainage-protection". The core of net with its unique tri-dimension structure can bear higher compressing load in construction and remaiin the certain thickness, provide good water conductivity.

Features of Tri Planar Geonet Composite With Geotextile

Net drainage geocomposites are manufactured using a unique geotextile filter developed specifically for use in drainage geocomposites for its high tensile modulus and ability to prevent soil ingress into the void space of the drainage core.

Specification of Tri Planar Geonet Composite With Geotextile

Item Unit 1200g 1400g 1600g 1800g 2000g
1 Compound weight of unit area g/m2 1200 1400 1600 1800 2000
2 Compound thickness mm 6.0 7.0 8.0 9.0 10.0
3 Compound tensile strength KN/m 16 16 16 16 16
4 Compound hydraulic conductivity m2/s 1.2×10-4 1.2×10-4 1.2×10-4 1.2×10-4 1.2×10-4
5 Net and nonwoven geotextile peel strength KN/m 0.3 0.3 0.3 0.3 0.3
6 Net thickness mm 5.0 5.0 6.0 7.0 8.0
7 Net tensile strength KN/m 13 15 15 15 15
8 Nonwoven geotextile weight of unit area g/m2 200 200 200 200 200
9 Nonwoven geotextile permeability cm/s 0.3 0.3 0.3 0.3 0.3
10 Width m 2.1 2.1 2.1 2.1 2.1
11 Roll length m 30 30 30 30 30
