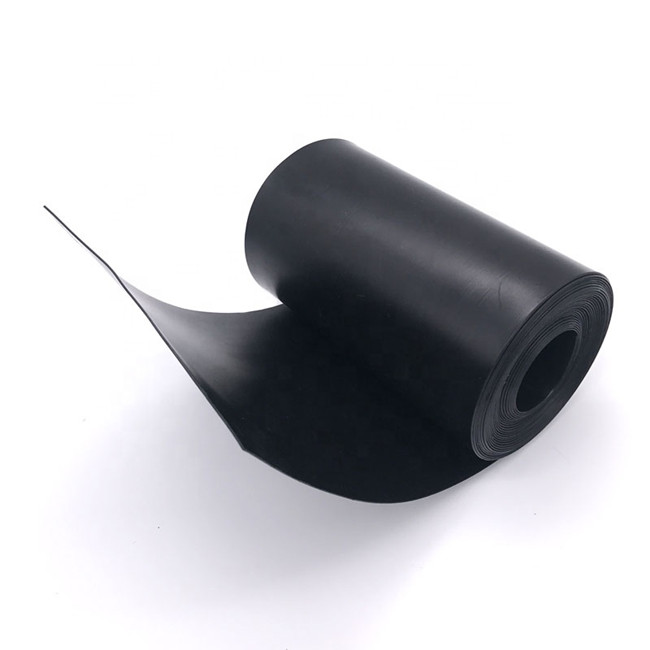

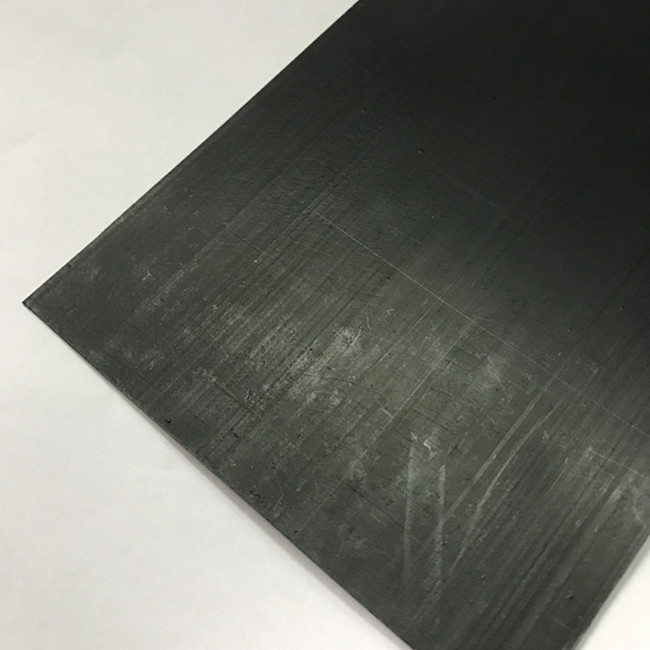

HDPE Smooth Geomembrane
Quantity
Inquiry

HDPE Smooth Geomembrane

    Description

    HDPE smooth geomembrane has a dense configuration which makes it the most chemically resistant of the polyethylene family.

    Description of HDPE Smooth Geomembrane

    HDPE smooth geomembrane is made from high grade polyethylene raw material, with carbon black, antioxidant, anti-aging and UV resistance component.

    HDPE Geomembrane

    material: HDPE, LDPE, LLDPE

    thickness: 0.2-3mm

    width: 1-8m

Specification of HDPE Smooth Geomembrane

Property Value
0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 2.50mm
Density G/CM3 0.94
Tensile properties
Strength at yield, N/mm 11 15 18 22 29 37 44
Break at yield, N/mm 20 27 33 40 53 67 80
Elongation at yield, % 12
Elongation at break, % 700
Right angle tear strength, N 93 125 156 187 249 311 374
Puncture strength, N 240 320 400 480 640 800 960
Stress crack resistance using notched constant tensile load, H 300
Carbon Black Content of a % 2.0-3.0
Standard OIT, MIN; or 100
Pressure OIT, MIN 400
Baking 90D later, Reserved standard OIT %; or 55
Baking 90D later, Reserved Pressure OIT%; or 80
Irradiate with UVA after 1600H, Reserved Standard OIT%; or 50
Irradiate with UVA after 1600H, Reserved pressure OIT% 50
’-70°C Embrittlement of low-temperature impact Passed
coefficient of permeability of water steam G.CM/(CM2.S.PA) ≤1.0*10-13
Dimensional Stability (%) ±2

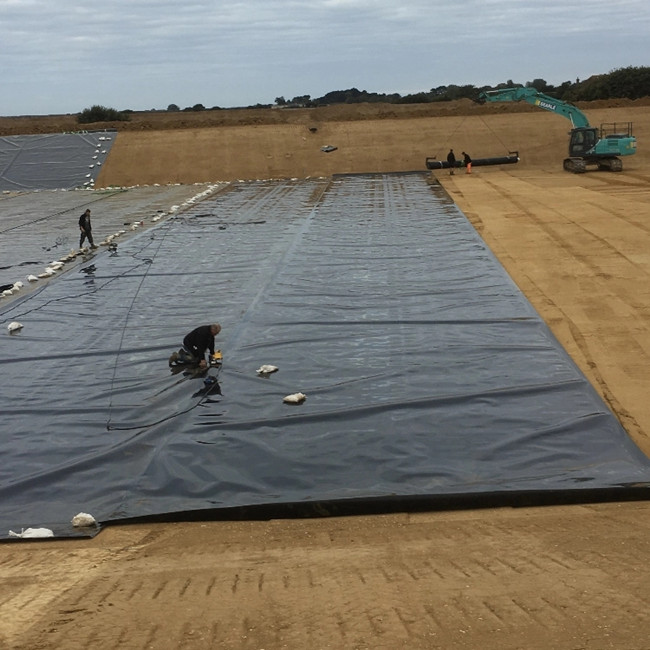

Application of HDPE Smooth Geomembrane

Landfill Foundation and Landfill Caps
Toxic Waste Containment
Liquid Waste Containment
Aquaculture Ponds
Drainage Pipeline
Water Reservoir
Dam Mining/Tailing Works
Tunnel Lining
Lake and Reservoir lining
prevent contaimation of ground water
Municipal waste management
Hazardous waste management
wastewater containment lagoons
