Fiberglass geogrid Composite with Nonwoven geotextile
Quantity
Inquiry

Fiberglass geogrid Composite with Nonwoven geotextile

    Description

    Fiberglass geogrid Composite with Nonwoven geotextile is a compound product made of fiberglass geogrid and geotextile.

    Description of Fiberglass geogrid Composite with Nonwoven geotextile

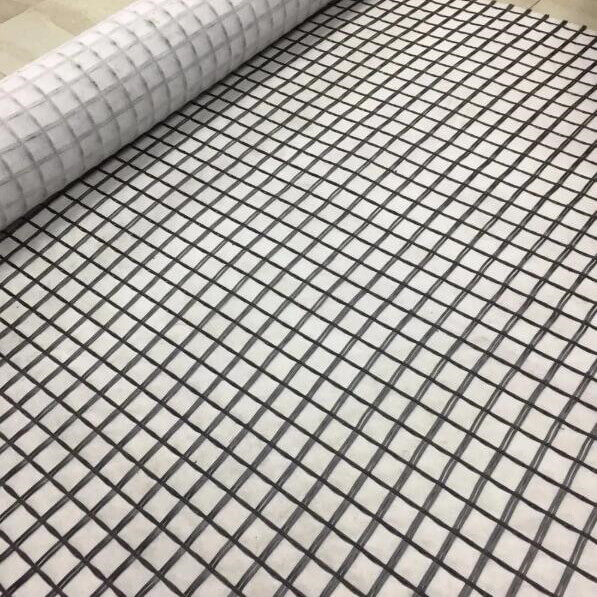

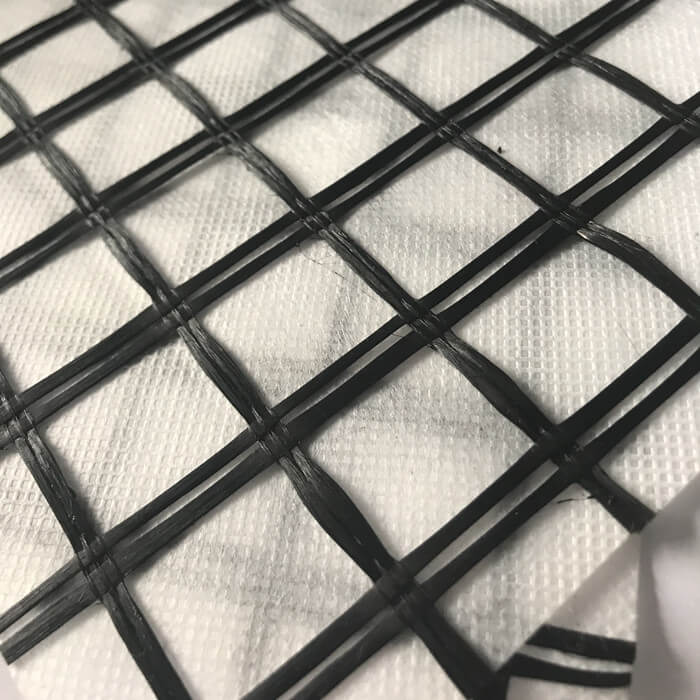

    Fiberglass geogrid composite geotextile is the composite material of filberglass geogrid and short fiber needle-punched non-woven geotextile.

Specification of Fiberglass geogrid Composite with Nonwoven geotextile

Geogrid Composite Geotextiles Technical Parameters
Categories Model Cracking-intensity (KN/m) Break elongation ratio (%) Mesh Size (mm*mm) Breadth (m)
Longitudinal Crosswise Longitudinal Crosswise
Fiberglass Composite Geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
Fiberglass Geogrid Composite Geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
High Strength Polyester Fiber Composite Geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6
High Strength Polyester Fiber Geogrid Composite Geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6

Features of Fiberglass geogrid Composite with Nonwoven geotextile

•The permeability: be able to handle the construction of modified asphalt pavement under high temperature conditions, effectively prevent water penetration, to avoid the damage of road surface layer and roadbed.

•To prevent and delay the crack reflection: it has low elongation and high tensile strength, and effectively clear the stress at the joint or crack position, reduce the crack expansion and reflection in the pavement, postpone crack reflection.
