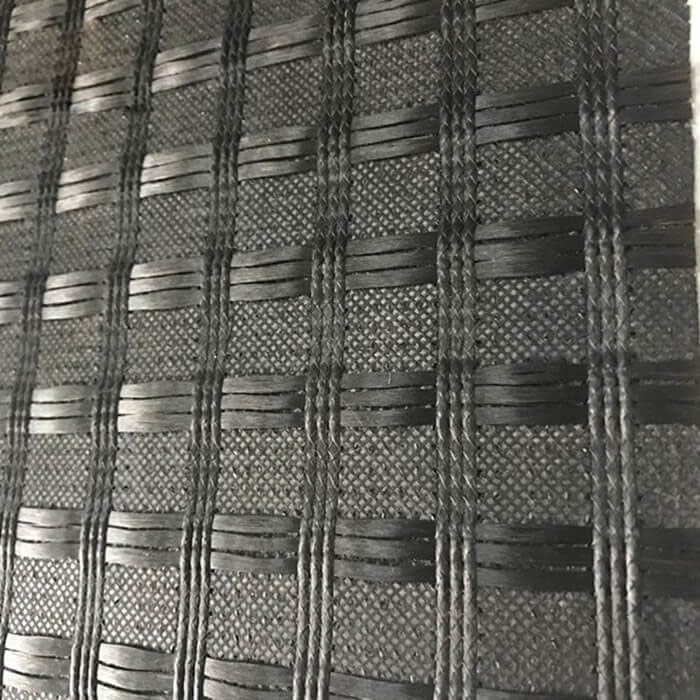

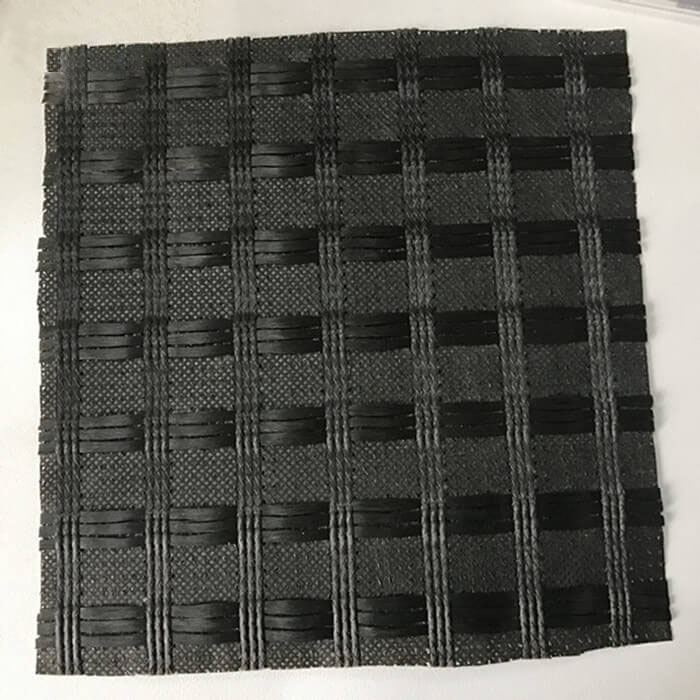

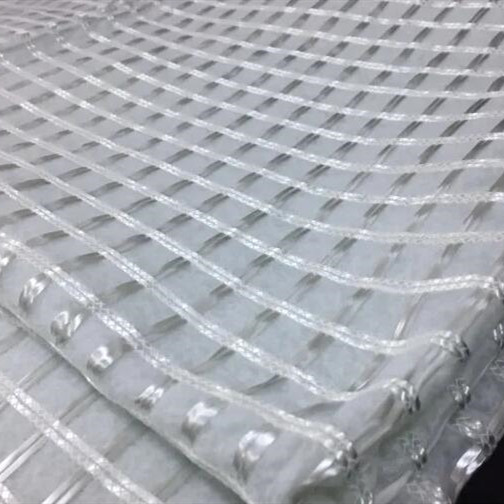

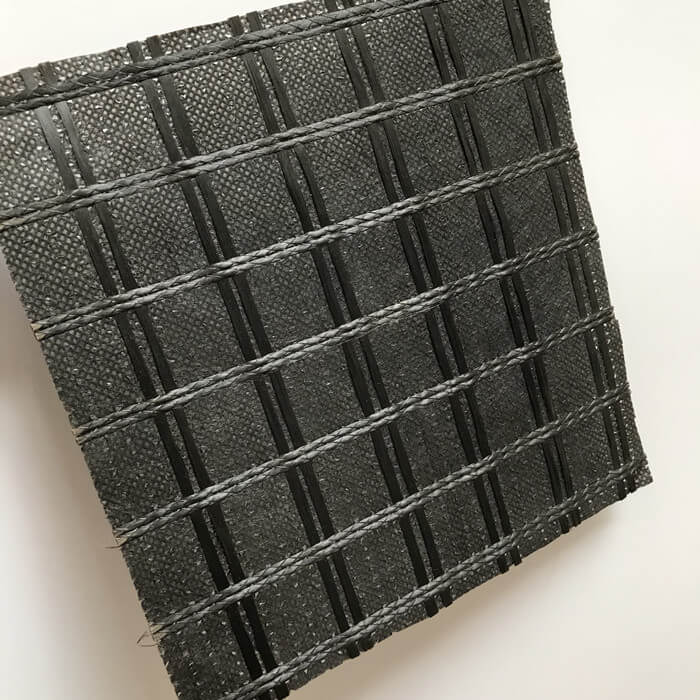

Fiberglass Geogrid With Geotextile

    Description

    Geocomposite Geogrid is the composite of Geogrid and Geotextile. Fiberglass Geogrid stitch with fabric first and then coated withbitumen.

    Description of Fiberglass Geogrid With Geotextile

    The composite has high tensile strength, small elongation, vertical and horizontal deformation uniform characteristics, high permeability, filter as well as excellent wear resistance.

Specification of Fiberglass Geogrid With Geotextile

Geogrid Composite Geotextiles Technical Parameters
Categories Model Cracking-intensity (KN/m) Break elongation ratio (%) Mesh Size (mm*mm) Breadth (m)
Longitudinal Crosswise Longitudinal Crosswise
Fiberglass Composite Geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
Fiberglass Geogrid Composite Geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
High Strength Polyester Fiber Composite Geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6
High Strength Polyester Fiber Geogrid Composite Geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6

Features of Fiberglass Geogrid With Geotextile

High tensile strength, low elongation ratio, uniform deformation; good permeable, filtration and good wear-resistant.

Our Company

Feicheng Lianyi Engineering Plastics Co., Ltd. is a comprehensive enterprise. Our business scope covers scientific research, development, manufacturing and sales of geosynthetic, plastic and fiberglass products. At present, our company owns fixed assets of RMB800 million, with 581 staff members, 48 percent of who are graduated from domestic universities. We also have established long-term cooperation relationships with several research institutes, universities and designing institutes. Our technical capability is very abundant. Our annual output is about 150000 tons.

Our leading products are chopped strand mats, E-glass chopped strand mats, C-glass chopped strand mats, fiberglass geogrids, polyester gegorids, geogrids, geonets, geocells, safety fences, warp-knitted geogrids, steel welded geogrids and geo-mattress. They have been widely used in the fields of highway, railway, reservoir, airport and mine. Our company is also one of the earliest members of China Geosynthetic Material Engineering Institute. We have obtained ISO9001 and CE certificates, and some products have passed SGI test. Now our products have been sold to many countries and areas, such as Korea, Israel, Kuwait, Thailand, Canada, Panama, and Taiwan area, winning a good reputation. Providing high quality and perfect service for consumers is our management theory. Keep innovating and constantly improving our products is our developing policy. We are looking forward to establishing long-term cooperation relationship with you.
