Asphalt Reinforcement Fiberglass Geocomposite
Quantity
Inquiry

Asphalt Reinforcement Fiberglass Geocomposite

    Description

    Asphalt Reinforcement Fiberglass Geocomposite is a fiberglass geogrid with a lightweight geotextile.

    Description of Asphalt Reinforcement Fiberglass Geocomposite

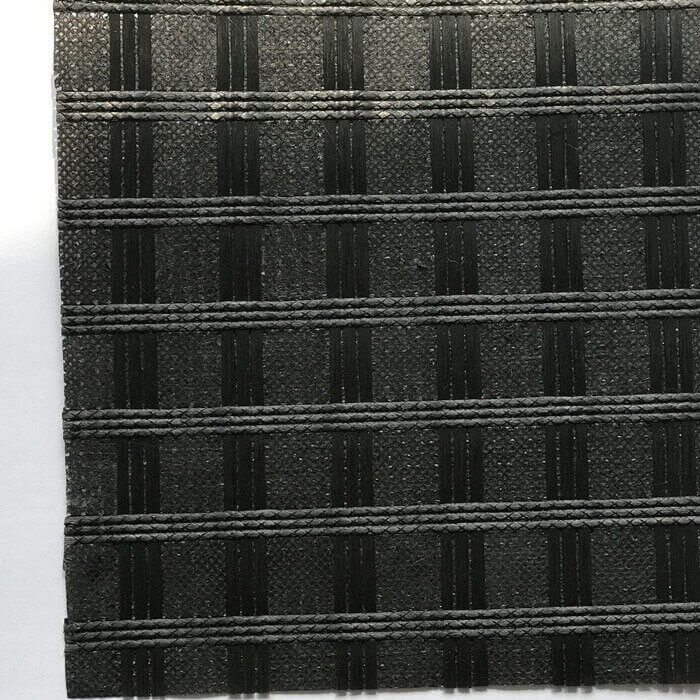

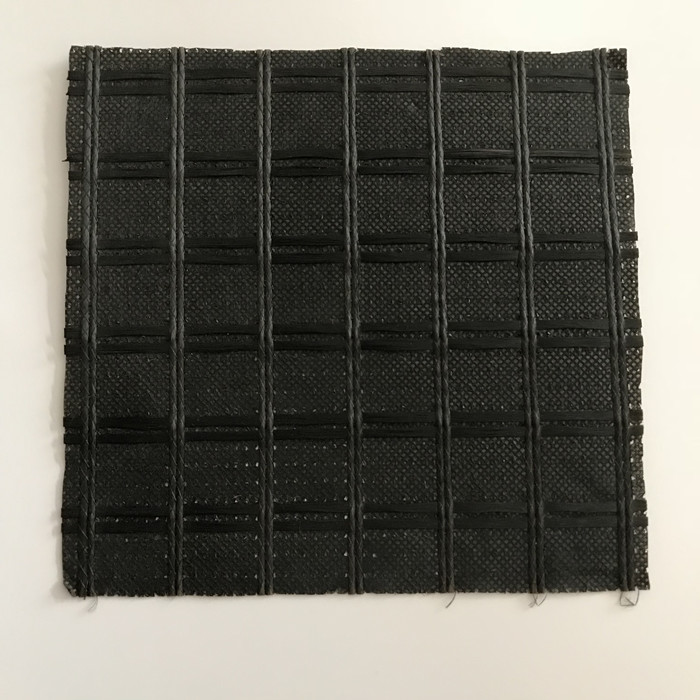

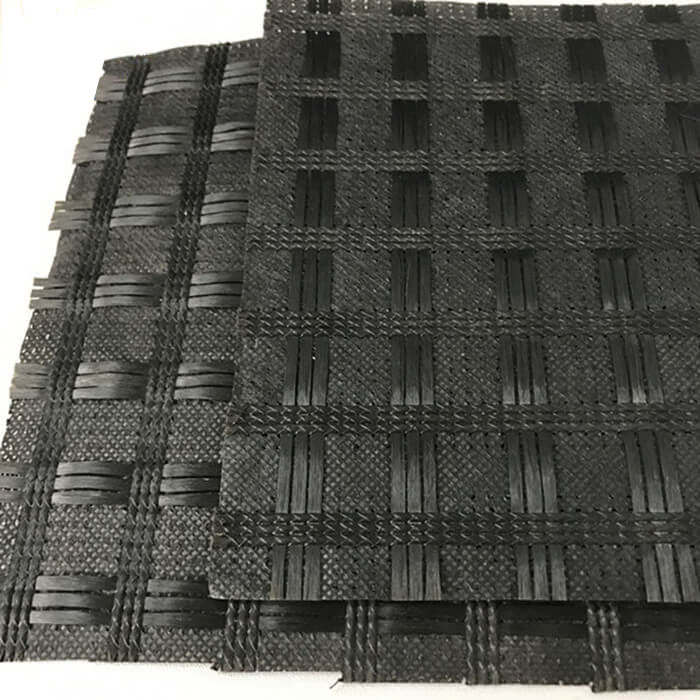

    Asphalt Reinforcement Fiberglass Geocomposite is manufactured by bonding Fiberglass biaxial geogrid to polyester nonwoven geotextile, it is especially designed for Asphalt reinforcement.

Specification of Asphalt Reinforcement Fiberglass Geocomposite

Geogrid Composite Geotextiles Technical Parameters
Categories Model Cracking-intensity (KN/m) Break elongation ratio (%) Mesh Size (mm*mm) Breadth (m)
Longitudinal Crosswise Longitudinal Crosswise
Fiberglass Composite Geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
Fiberglass Geogrid Composite Geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
High Strength Polyester Fiber Composite Geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6
High Strength Polyester Fiber Geogrid Composite Geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6

Features of Asphalt Reinforcement Fiberglass Geocomposite

1. Good tensile strength

2. High modulus of elasticity

3. Good temperature resistance

4. High water permeability and filtration

5. Tear resistance, anti-dissemination, long service life

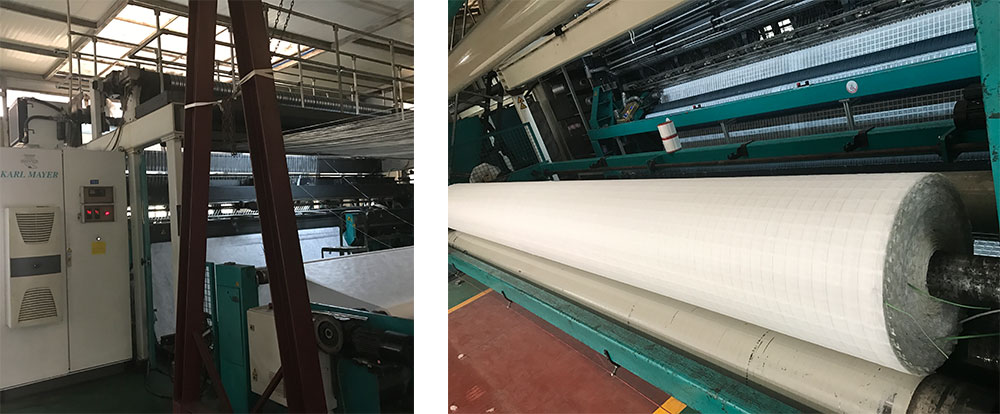

Production Line of Asphalt Reinforcement Fiberglass Geocomposite
