Combined Biaxial Geogrid Geotextile
Quantity
Inquiry

Combined Biaxial Geogrid Geotextile

    Description

    Combined Biaxial Geogrid Geotextile is a composite made of bi-axial polypropylene (PP) geogrid, heat bonded to a long fiber non-woven polyester geotextile.

    Description of Combined Biaxial Geogrid Geotextile

    Biaxial Geogrid Geotextile is a compound product made of PP geogrid and PET geotextile, especially designed for soil stabilisation and reinforcement applications. The composite geogrids are manufactured by bonding a biaxial geogrid to a nonwoven polypropylene geotextile.

Features of Combined Biaxial Geogrid Geotextile

1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.

2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.

3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.

4. Prevent culverts from flawing.

5. Enhance earth slope and prevent water loss and soil erosion.

6. Decrease underlayer thickness and save manufacturing cost.

7. Enhance the stability of side slope turf net patch to improve greening.

8. Replace wire netting used in mine as intermediate ceiling netting.

Specification of Combined Biaxial Geogrid Geotextile

Geogrid index properties TGSG20-20 TGSG30-30 TGSG40-40 TGSG50-50
Polymer PP
Longitudinal Tensile Strength (KN/m) 20 30 40 50
Transverse Tensile Strength(KN/m) 20 30 40 50
Longitudinal Elongation(%) 13
Transverse Elongation(%) 13
Longitudinal Strength at 2% Strain (KN/m) 7 10.5 14 17.5
Transverse Strength at 2% Strain (KN/m) 7 10.5 14 17.5
Longitudinal Strength at 5% Strain (KN/m) 14 21 28 35
Transverse Strength at 5% Strain (KN/m) 14 21 28 35
Geotextile physical properties
Polymer PP nonwoven geotextile Or PET nonwoven geotextile
Mass per unit area(g/m2) 150 or 200
Roll Width(m) 3.9 or 5.9
Roll Length(m) 50

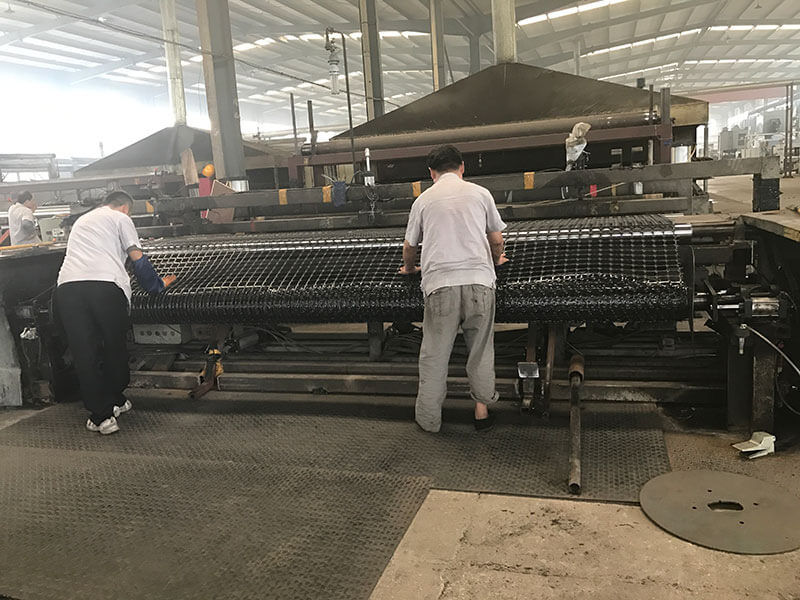

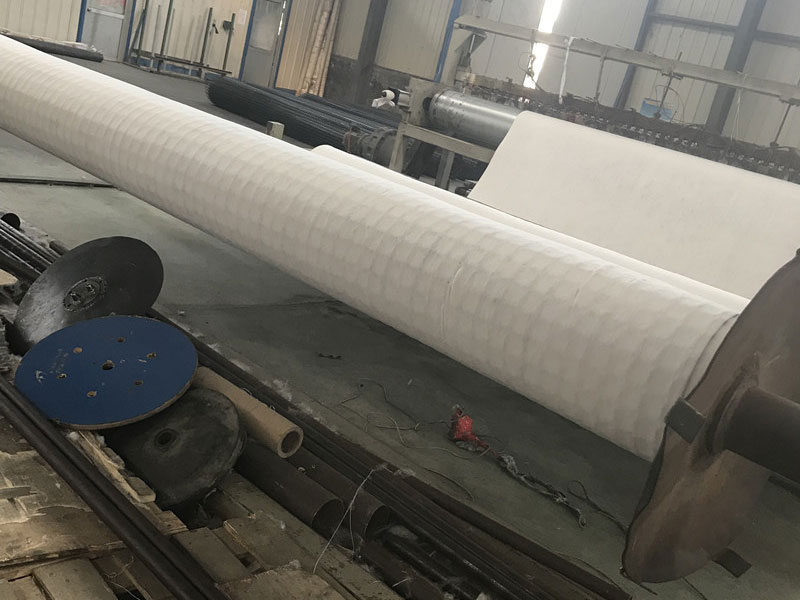

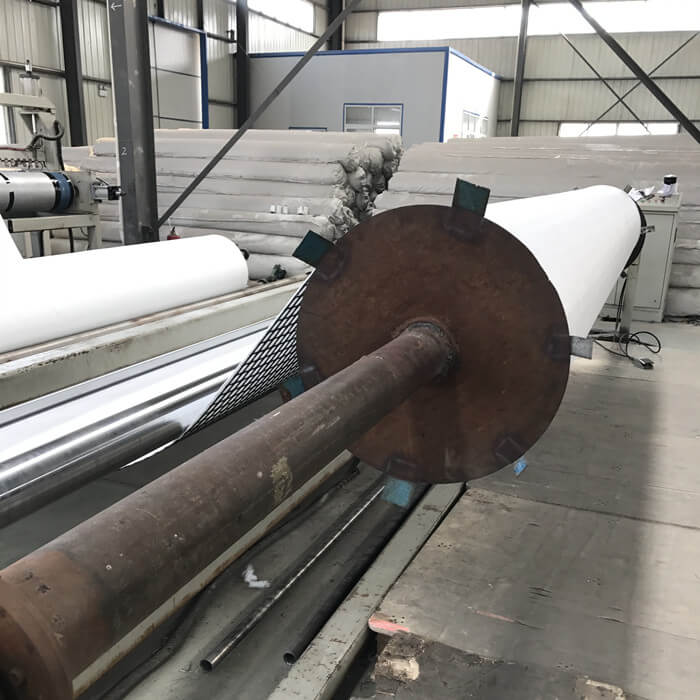

Production Line of Combined Biaxial Geogrid Geotextile

Our Company

Lianyi is the professional geosythetic products manufacturer, supplier, wholesaler and exporter dedicated in supplying one stop geosynthetic products and services to worldwide customers since its foundation in 2002. We have over 600professional staffs and 30,000 square meters manufacturing factory. Lianyi had been specializing in delivering one stop geosynthetics products and solutions to worldwide customers since its foundation in 2002. Lianyi had provided many types of effective and state of the geogrid, geotextiles, geocells, geomembrane, drainage boards, to over 100 countries.Lianyi is not only manufacturing best quality geosynthetics products but also providing professional design and nstallation service. OEM, ODM, custom development and fabrication are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible. We had been certificated by the CE, ISO9001, ISO14001, SGI, TRI, OHSAS18001, etc
