Nonwoven Geotextile Composite Geogrid
Quantity
Inquiry

Nonwoven Geotextile Composite Geogrid

    Description

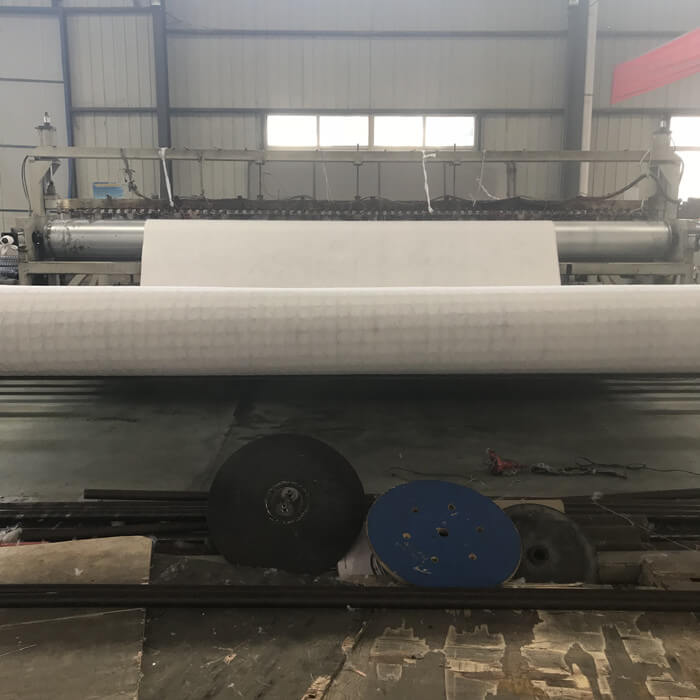

    Nonwoven Geotextile Composite Geogrid is produced by heat bonding the geogrids with any type of the Thrace Group Nonwoven geotextiles.

    Description of Nonwoven Geotextile Composite Geogrid

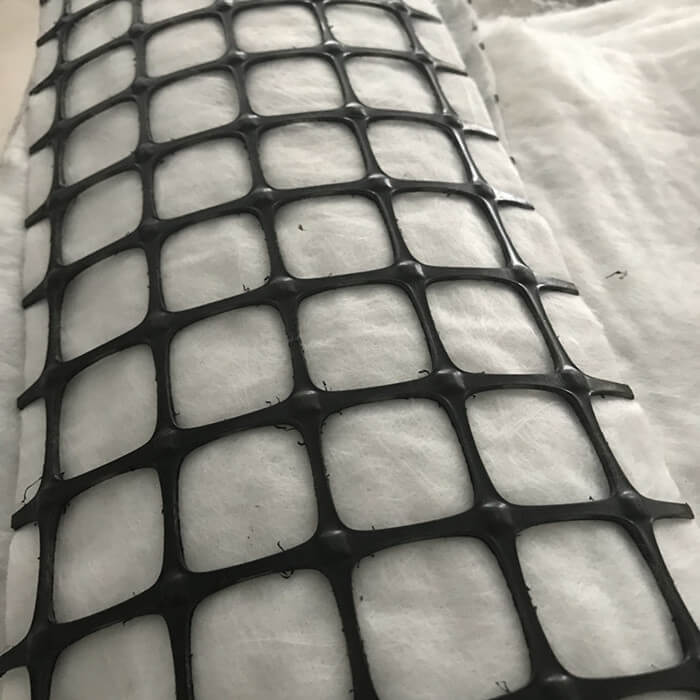

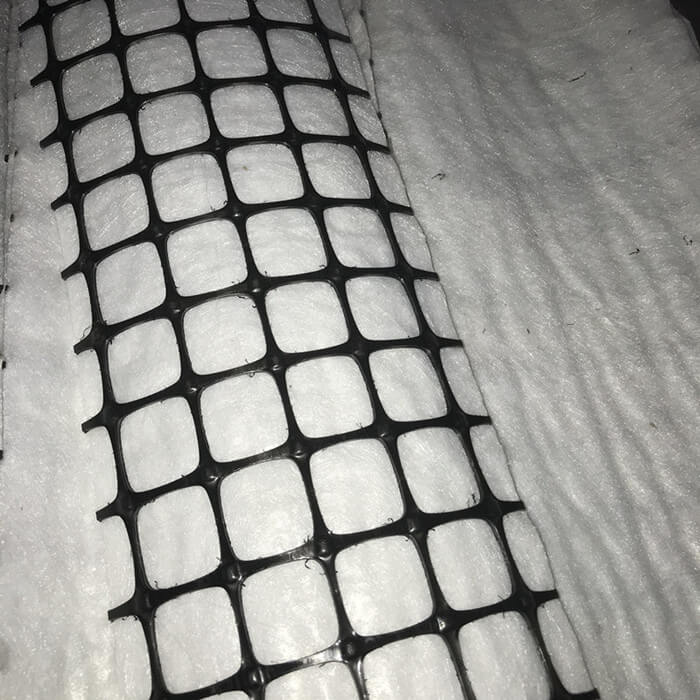

    Composite pp biaxial geogrid is a compound product made of PP Geogrid and PET/PP geotextile, especially designed for soil stabilisation and reinforcement applications. The composite geogrids are manufactured by bonding a biaxial geogrid to a non woven geotextile.

Specification of Nonwoven Geotextile Composite Geogrid

Geogrid index properties TGSG20-20 TGSG30-30 TGSG40-40 TGSG50-50
Polymer PP
Longitudinal Tensile Strength (KN/m) 20 30 40 50
Transverse Tensile Strength(KN/m) 20 30 40 50
Longitudinal Elongation(%) 13
Transverse Elongation(%) 13
Longitudinal Strength at 2% Strain (KN/m) 7 10.5 14 17.5
Transverse Strength at 2% Strain (KN/m) 7 10.5 14 17.5
Longitudinal Strength at 5% Strain (KN/m) 14 21 28 35
Transverse Strength at 5% Strain (KN/m) 14 21 28 35
Geotextile physical properties
Polymer PP nonwoven geotextile Or PET nonwoven geotextile
Mass per unit area(g/m2) 150 or 200
Roll Width(m) 3.9 or 5.9
Roll Length(m) 50

Features of Nonwoven Geotextile Composite Geogrid

Have high tensile strength, small elongation, and vertical and horizontal and deformation uniform characteristicss. At the same time has high permeability, filter and excellent wear resistance.
