Composite Geogrid With Geotextile

    Description

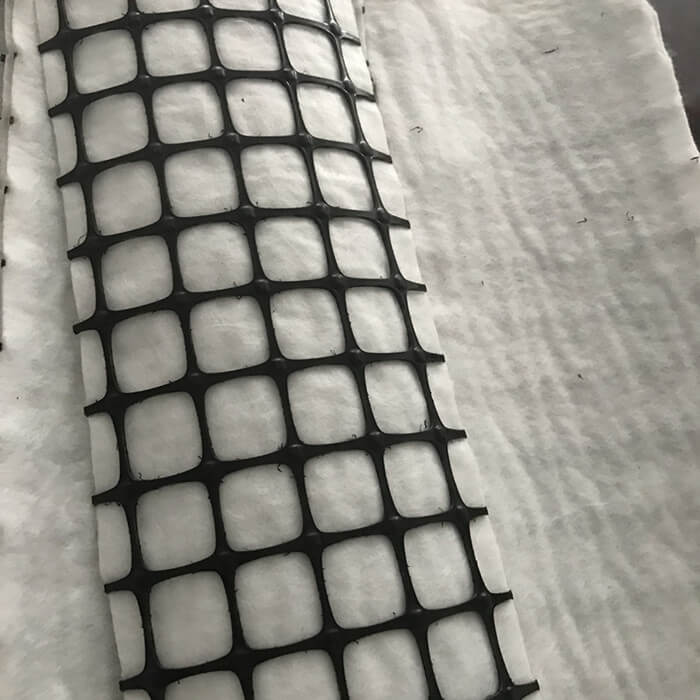

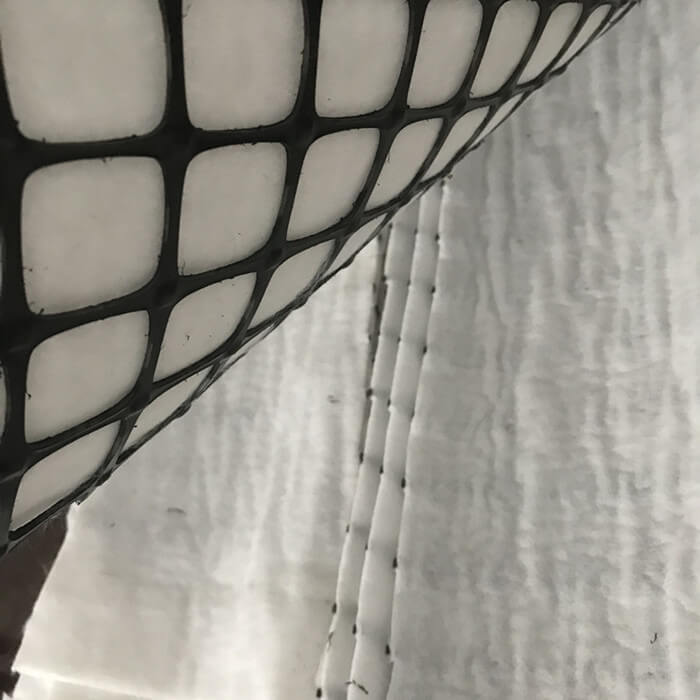

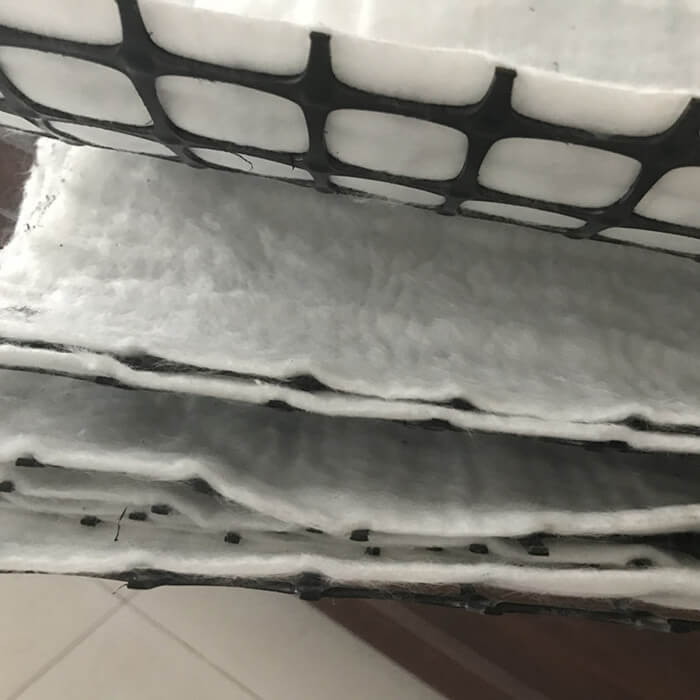

    Composite Geogrid With Geotextile consists of a bi-axial polypropylene geogrid heat bonded to a long fiber nonwoven geotextile.

    Description of Composite Geogrid With Geotextile

    PP Biaxial Geogrid can be 20kN/m, 25kN/m, 30kN/m, 40kN/m...

    Geotextile can be 100gsm, 150gsm, 200gsm...

Specification of Composite Geogrid With Geotextile

Classification Type Bearing strength(KN/m) Bearing elongation(%) Width
Composite PP Biaxial Geogrid With Nonwoven Geotextile MD CD MD CD (m)
GGM20/150 ≥20 ≥20 13 13 2~6
GGM30/150 ≥30 ≥30 13 13 2~6
GGM40/150 ≥40 ≥40 13 13 2~6

Function of Composite Geogrid With Geotextile

1. Improving bearing capacity of road foundation and prolong its service life

2. Preventing road surface from subsiding and cracking

3. Be convenient for construction, reducing cost and maintaining expense for the project

4. Providing stability for slopes and avoid the losing of the water and soil

Application of Composite Geogrid With Geotextile

1. PP geogrid combigrid can widely apply in the water conservation, the municipal administration;

2. The building, the transportation, the subway, the tunnel;

3. The environmental protection and so on.

4. It can widely apply in the water conservation, the municipal administration.

5. the building, the transportation, the subway, the tunnel, the environmental protection and so on.

6. Road construction. Applied in road to improve stability and bearing capacity, prevent deformation and crack

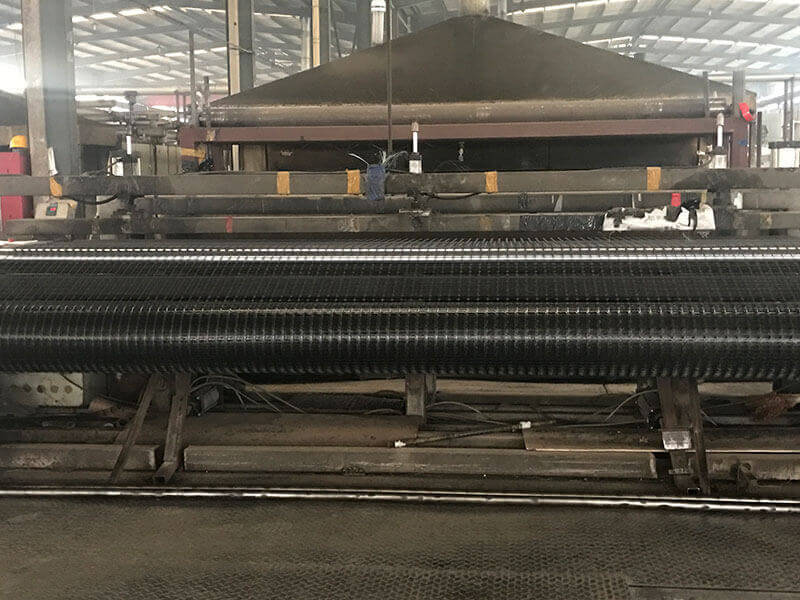

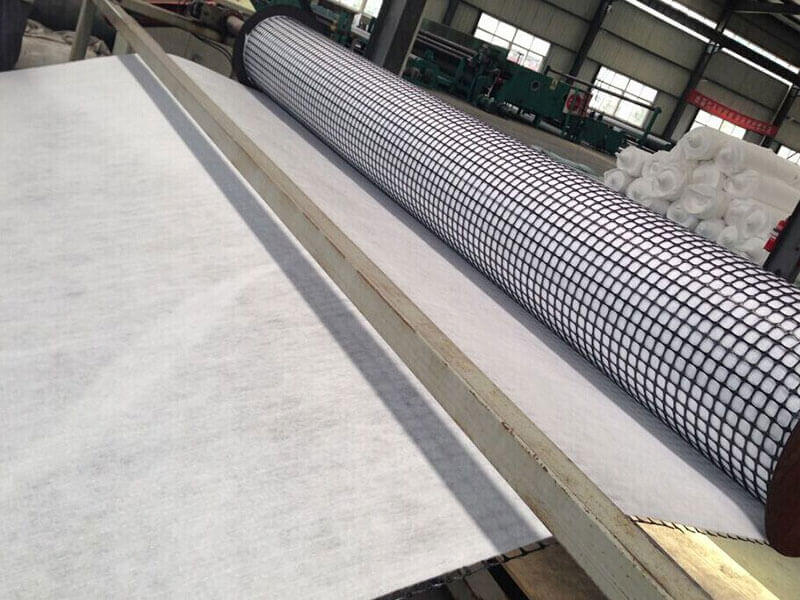

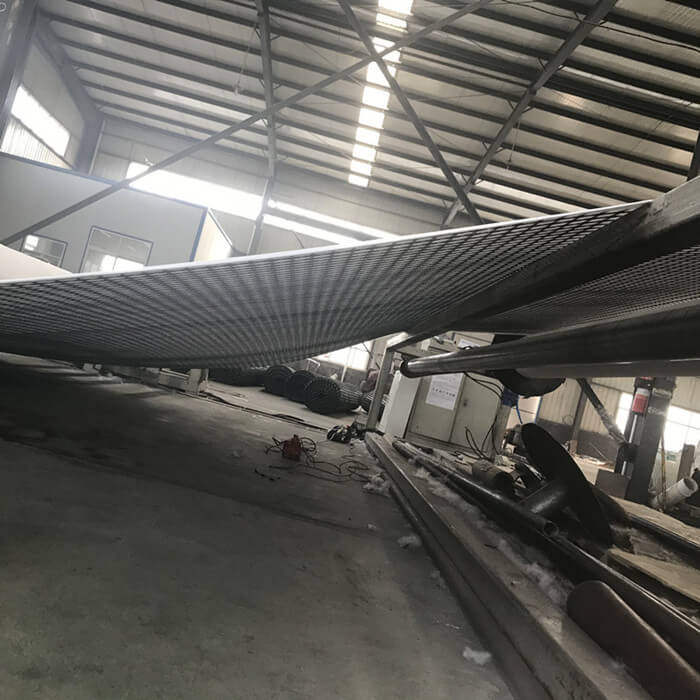

Production Line of Composite Geogrid With Geotextile

Our Service

1. Factory lab to test the composite geomembrane quality.

2. Third party test is available.

3. Welding machine is available for one-stop purchase.

4. Welding team is also available for abroad installation.

5. Project suggestions & solutions are available based on our rich project experience.

6. Various product standard to meet your project needs.

7. Free samples are available.
