Composite Biaxial Geogrid

    Description

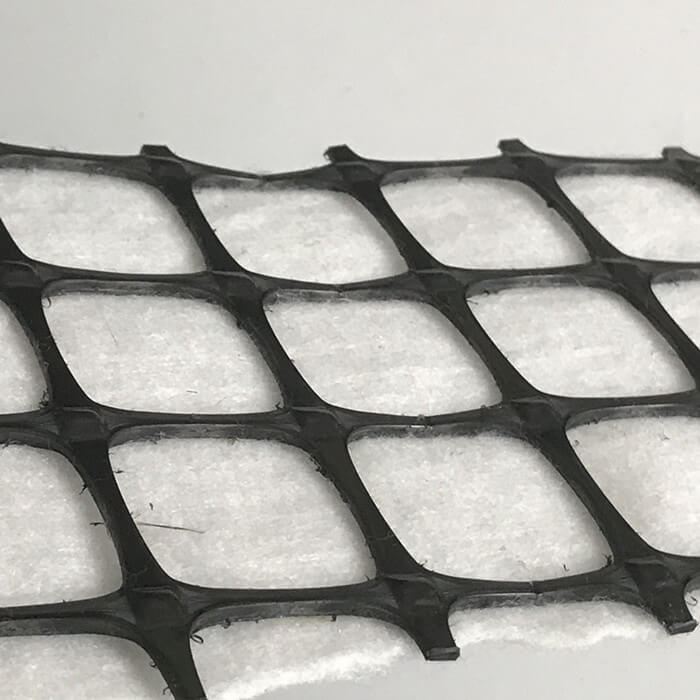

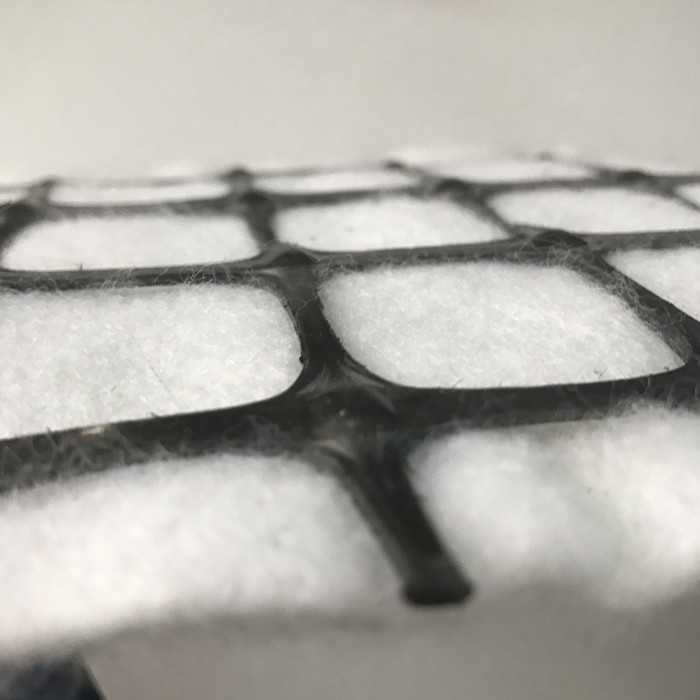

    Composite biaxial Geogrid is traditional polypropylene extruded true biaxial geogrid thermally bonded with a needle punched nonwoven geotextile.

    Description of Composite Biaxial Geogrid

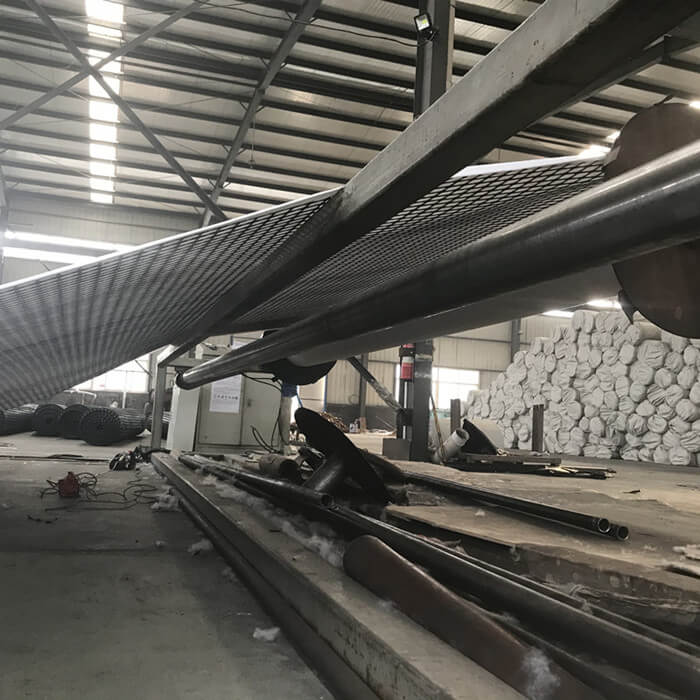

    Composite biaxial Geogrid is manufactured by bonding PP biaxial geogrid to nonwoven geotextile, it is especially designed for soil stabilisation and reinforcement applications.

    1. Material:PP

    2. Strength:25-50KN/M

    3. Width:3.95m

    4. Length:50m or 100m

Specification of Composite Biaxial Geogrid

BI-AXIAL GEOGRID MD CD
Carbon Black Content  ASTM D 4218  % 2.0
Ultimate Tensile Strength{1} ASTM D 6637 lbs/ft(kN/m) 1645(24.0) 1645(24.0)
Tensile Strength at 2% strain{1} ASTM D 6637 lbs/ft(kN/m) 720(10.5) 720(10.5)
Tensile Strength at 5% strain{1} ASTM D 6637 lbs/ft(kN/m) 1343(19.6) 1343(19.6)
Junction Efficiency{2}{3} GRI-GC2  % >95 >95
Flexural Rigidity{1} ASTM D 7748  mg-cm 1000000
Aperture Stability{2}{4}  US.COE  m-N/deg 0.65
Minimum Rib Thickness  Callipered  inch(mm) 0.07(1.7) 0.05(1.3)
Aperture Size{2}{5}  Nominal  inch(mm) 1.33(34.0) 1.22(31.0)
GEOTEXTILE
Raw Material Polyester, Continuous filament, needle punched
Ultimate Tensile Strength{1}  ASTM D 4595 lbs/ft(kN/m)  781(11.4)  781(11.4)
Grab Strength{1} ASTM D 4632 lbs(kN)  128(0.57)
Trapezoidal Tear{1} ASTM D 4533 lbs(kN)   56(0.25)
Elongation at Ultimate{2}  ASTM D 4595 % 60 60
CBR Burst Strength{1}  ASTM D 6241 lbs(kN)  540(2.4)
Permeability  ASTM D 4491 cm/sec   0.41
Apparent Opening Size O9S  ASTM D 4751 mm   0.12
Mass Per Unit Area{2}  ASTM D 5261 oz/yd2(g/m2)  6.0(200)
TYPICAL ROLL DIMENSIONS
Roll Width  ft(m) 12.79(3.9)
Roll Length{6}  ft(m)  164.04(50.0)

Application of Composite Biaxial Geogrid

1. High tensile and long-term strength

2. High tear strength

3. Excellent creep resistance

4. Flexible and durable

5. Increased pull-out resistance and compound strength

6. Optimum stability of the junction of the grid

7. High chemical and biological resistance

8. UV resistance / Cost effective

9. High resistance to installation damage and ease of installation
