Combined Geogrid with Geotextile

    Description

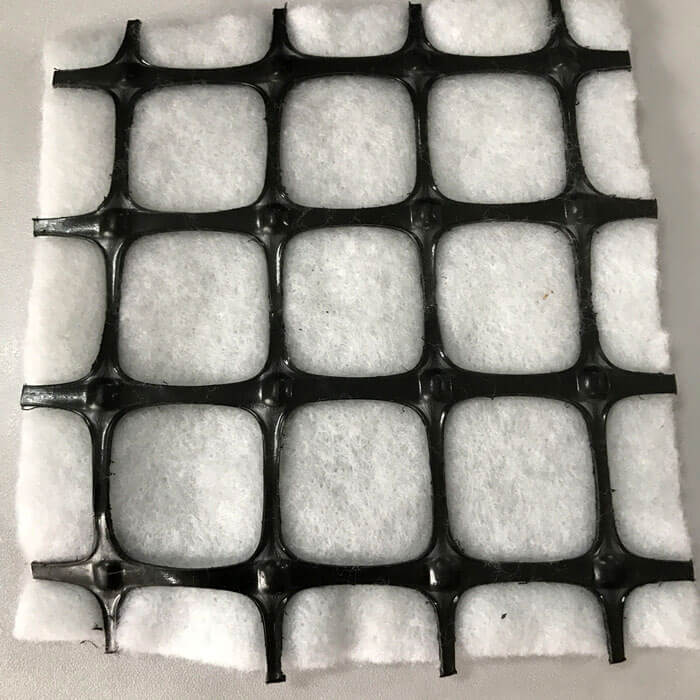

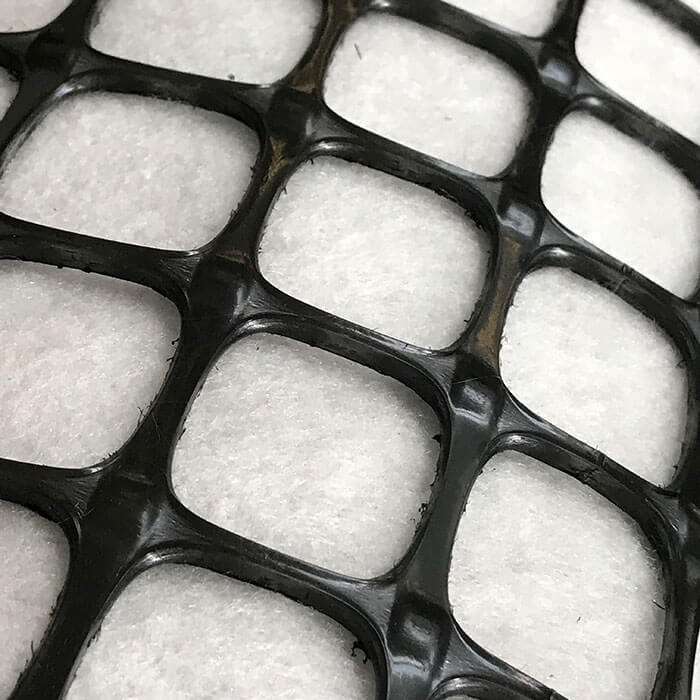

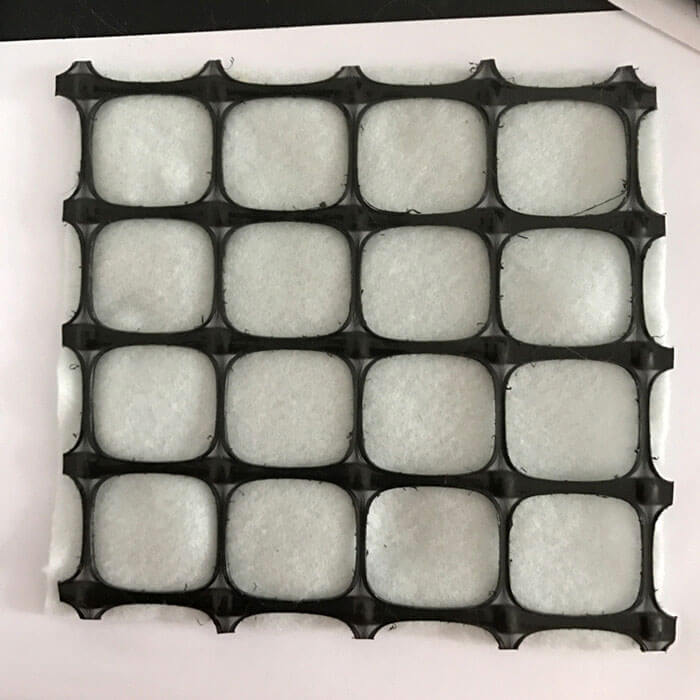

    Combined Geogrid with Geotextile is a polypropylene extruded biaxial geogrid with a non-woven needlepunched geotextile bonded to one side.

    Description of Combined Geogrid with Geotextile

    Combined Geogrid with Geotextile is an engineered geogrid designed for soil stabilisation, separation and reinforcement applications. Combined Geogrid with Geotextile is manufactured from Polypropylene through the process of extruding, longitudinal and transverse heat stretching. Geotextile is then heat bonded to the grid to form a sound composite structure.

    It is designed to prevent reflection cracking, water damage and improve load capacity in road construction and renovation. It has the property of high temperature resistance and anti-fatigue cracking and therefore extending the life and time of asphalt pavements.

Specification of Combined Geogrid with Geotextile

BI-AXIAL GEOGRID MD CD
Carbon Black Content  ASTM D 4218  % 2.0
Ultimate Tensile Strength{1} ASTM D 6637 lbs/ft(kN/m) 1645(24.0) 1645(24.0)
Tensile Strength at 2% strain{1} ASTM D 6637 lbs/ft(kN/m) 720(10.5) 720(10.5)
Tensile Strength at 5% strain{1} ASTM D 6637 lbs/ft(kN/m) 1343(19.6) 1343(19.6)
Junction Efficiency{2}{3} GRI-GC2  % >95 >95
Flexural Rigidity{1} ASTM D 7748  mg-cm 1000000
Aperture Stability{2}{4}  US.COE  m-N/deg 0.65
Minimum Rib Thickness  Callipered  inch(mm) 0.07(1.7) 0.05(1.3)
Aperture Size{2}{5}  Nominal  inch(mm) 1.33(34.0) 1.22(31.0)
GEOTEXTILE
Raw Material Polyester, Continuous filament, needle punched
Ultimate Tensile Strength{1}  ASTM D 4595 lbs/ft(kN/m)  781(11.4)  781(11.4)
Grab Strength{1} ASTM D 4632 lbs(kN)  128(0.57)
Trapezoidal Tear{1} ASTM D 4533 lbs(kN)   56(0.25)
Elongation at Ultimate{2}  ASTM D 4595 % 60 60
CBR Burst Strength{1}  ASTM D 6241 lbs(kN)  540(2.4)
Permeability  ASTM D 4491 cm/sec   0.41
Apparent Opening Size O9S  ASTM D 4751 mm   0.12
Mass Per Unit Area{2}  ASTM D 5261 oz/yd2(g/m2)  6.0(200)
TYPICAL ROLL DIMENSIONS
Roll Width  ft(m) 12.79(3.9)
Roll Length{6}  ft(m)  164.04(50.0)

Application of Combined Geogrid with Geotextile

1. Lianyi PP biaxial geogrid can be applied in all kinds of roads, railways, airports to enhance the roadbed.

2. Lianyi Biaxial Geogrid can be applied in a large car park and terminal freight yard, etc. to strenghten the foundations of a permanent load.

3. Lianyi Biaxial Geogrid can be applied in rail, road slope's protection.

4. Lianyi Biaxial Geogrid can be applied to enhance the culvert.

5. Lianyi Biaxial Geogrid can be applied as a secondary enhancement after the uniaxial Geogrid soil enhancement, further enhance the soil, prevent soil erosion.

6. Lianyi Biaxial Geogrid for mining, tunnel reinforcement.

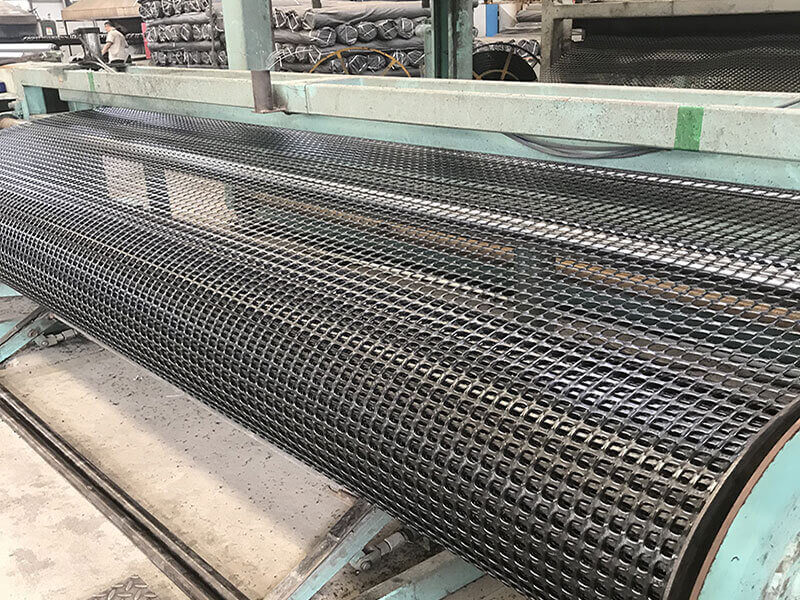

Production Line of Combined Geogrid with Geotextile
