Biaxial Geogrid With Geotextile

    Description

    Biaxial Geogrid With geotextile is produced by heat bonding the geogrids with any type of the Non woven geotextiles.

    Description of Biaxial Geogrid With Geotextile

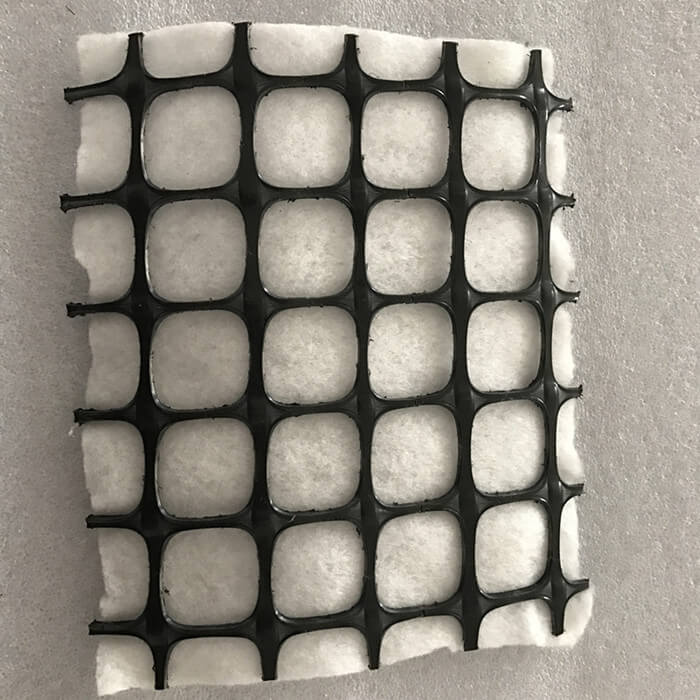

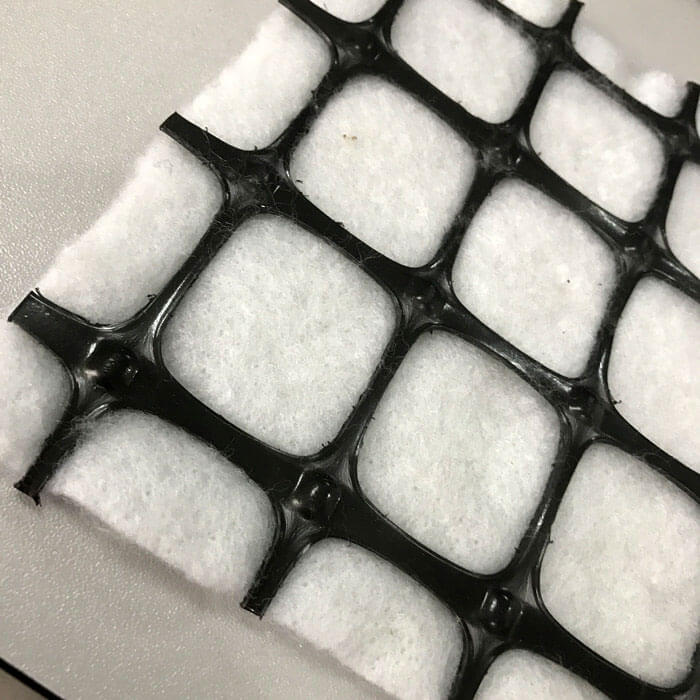

    Biaxial Geogrid With geotextile is a composite made of bi-axial polypropylene (PP) geogrid, heat bonded to a long fiber non-woven polyester geotextile that acts as a filter and soil separator. This geogrid is manufactured using a punching and drawing process whereby the polypropylene sheet is stretched in two directions, machine (longitudinal) and cross-machine (transverse). The result is a monolithic and isotropic geogrid with thick and wide ribs, thick integral nodes, and uniform square apertures. Engineered to be mechanically and chemically stable in aggressive soil environments, THIS-GEOCOMPOSITE allows sub-base drainage to help maintain structural stability, and is very effective in keeping expensive imported material from being contaminated by migration of fines from the saturated base soils. Biaxial geogrid pp composite nonwoven geotextile Biaxial geogrid pp composite nonwoven geotextile.

Specification of Biaxial Geogrid With Geotextile

Classification Type Bearing strength(KN/m) Bearing elongation(%) Width
Composite PP Biaxial  Geogrid With Nonwoven Geotextile  MD CD MD CD (m)
GGM20/150 ≥20 ≥20 13 13 2-6
GGM30/150 ≥30 ≥30 13 13 2-6
GGM40/150 ≥40 ≥40 13 13 2-6

Application of Biaxial Geogrid With Geotextile

1. For highways, railways, airports, and other road enhancements.

2. For water conservancy, port, farmland reclamation, landfill, municipal construction and other projects.

3. For the maintenance of the old road (asphalt pavement, cement concrete pavement), such as widening.
