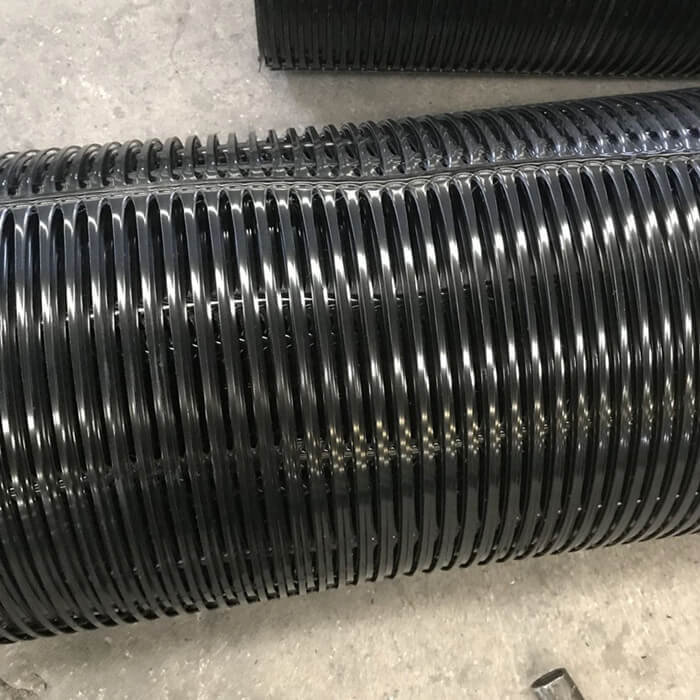

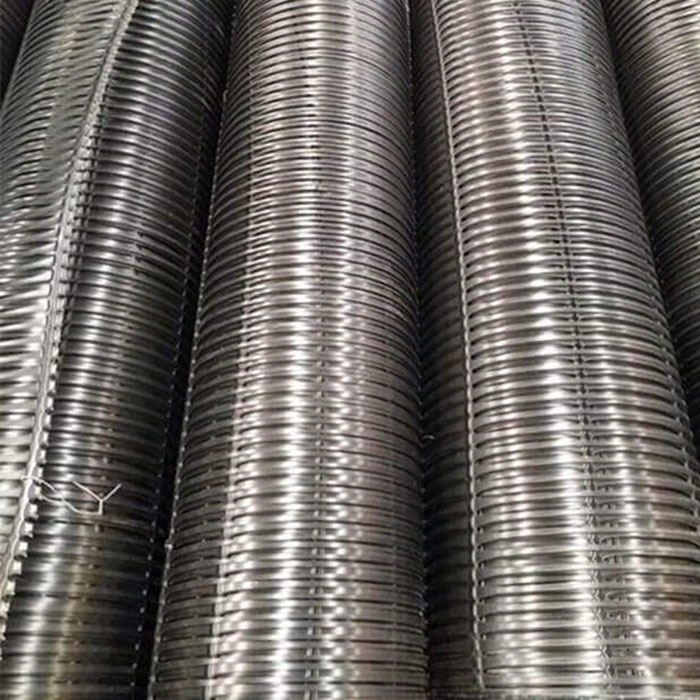

PP Plastic Uniaxial Geogrid
Quantity
Inquiry

PP Plastic Uniaxial Geogrid

    Description

    Uniaxial geogrid is a kind of high-strength structural materials for highways, municipal roads, railways and other subgrade enhancement

    Introduction of PP Plastic Uniaxial Geogrid

    PP Plastic Uniaxial Geogrid is extruded in HDPE or PP. It can provide high strength in one direction and are typically used on earth walls and slopes under long term high loading, and slip repairs. These uniaxial plastic geogrid carry large tensile loads applied in one direction (along the roll), and their open aperture structure interlocks with natural fill materials.

Product Features

1. Uniaxial high tensile strength, good creep resistance, chemical nature is stable.

2. The friction coefficient with gravel is large.

Product Function

1. Uniaxial geogrid is a kind of high-strength structural materials for highways, municipal roads, railways and other subgrade enhancement.

2. It is applied in the enhancement of dam rivers and the sea dike.

3. It is applied in the fence of orchards, vegetable, livestock, land, et. The use is safe and convenient, and conducive to disassembly, elegant appearance.

4. It is applied in the earth retaining and wall reinforcement works of highways, municipal roads, railways, rivers and along the coast.

5. It is mainly used for retaining walls, abutment, slope works and so on.

6. Retaining walls and abutment are force structure which assume all external load,  the active earth pressure, the upper part of the structure of the dynamic load, temperature stress and so on, in a larger long term reinforcement under tension, as well as the effect of repeated dynamic loading, the molecular structure of materials fatigue, occurred in the performance of attenuation and speed up the aging grid. In order to avoid deformation resulting from reinforcement material creep, it is better to select a high-density polyethylene(HDPE) as raw materials for uniaxial geogrid.

Specification of PP Plastic Uniaxial Geogrid

Property Test Method TGDG 40 TGSG 50 TGSG 80 TGSG 100 TGDG 110 TGDG 120
Ultimate tensile strength kN/m ASTM D 6637 40 50 80 100 110 120
Elongation at maximum load % 10
Tensile strength at 2 % elongation kN/m 10 11 23 29 30 35
Tensile strength at 5 % elongation kN/m 21 25 44 55 58 65
Creep Limit Strength kN/m 17 21 30 39 40 46
Minimum Carbon Black % ASTM D 4218 2

Property Test Method TGDG 150 TGSG 170 TGSG 200 TGSG 220 TGDG 240 TGDG 300
Ultimate tensile strength kN/m ASTM D 6637 150 170 200 220 240 300
Elongation at maximum load % 10
Tensile strength at 2 % elongation kN/m 39 45 55 59 65 90
Tensile strength at 5 % elongation kN/m 77 90 110 120 132 182
Creep Limit Strength kN/m 49 57 64 71.5 79 100
Minimum Carbon Black % ASTM D 4218 2

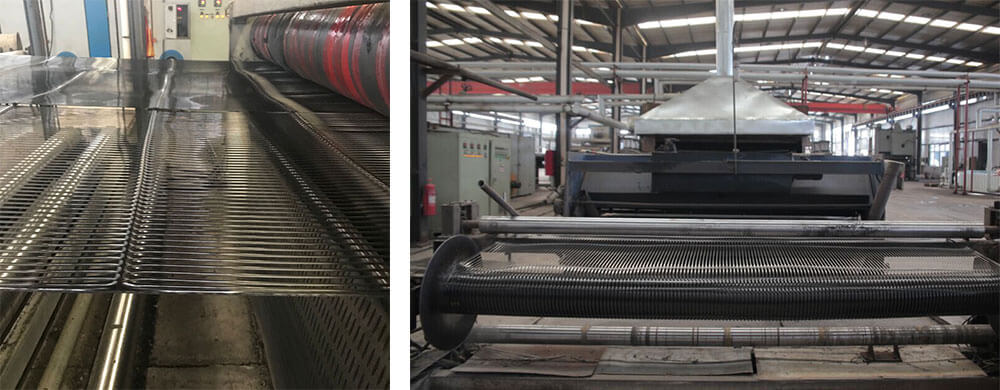

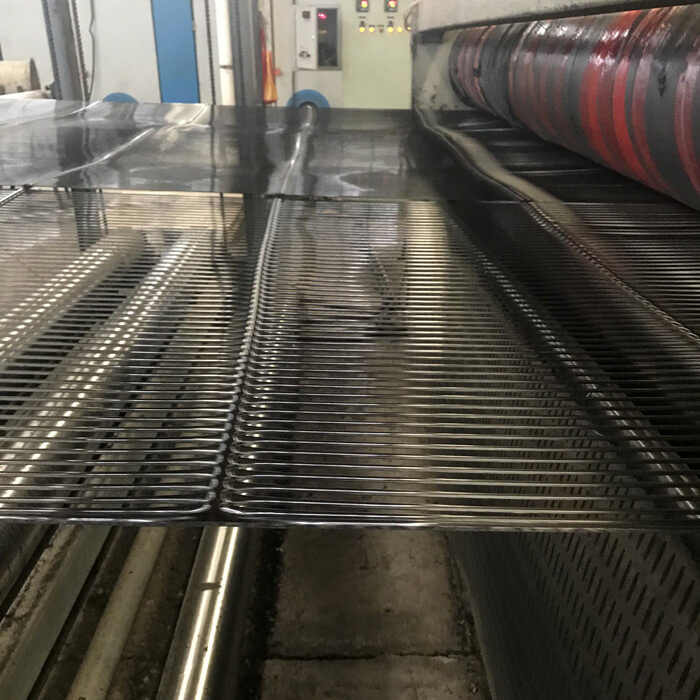

Production Line of PP Plastic Uniaxial Geogrid
