Geogrid Tensile properties ranging from 15 kN/m to 50 kN/m.Opening sizes between 30 mm and 65 mm.

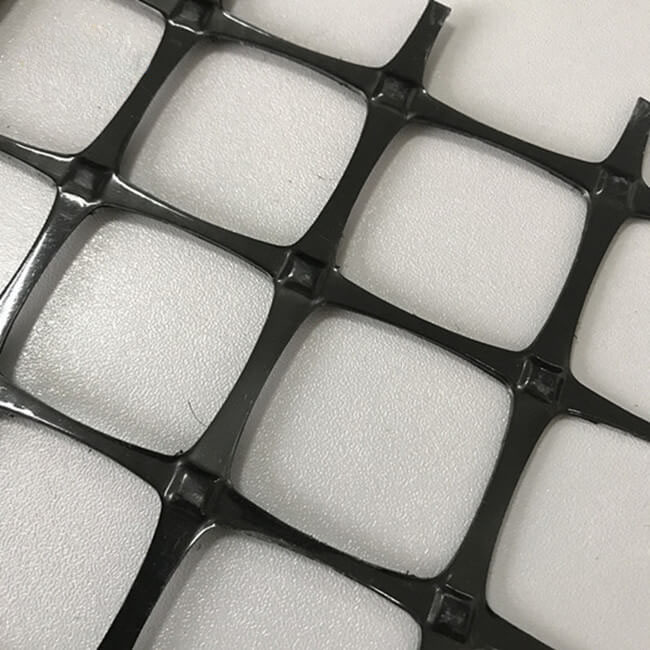

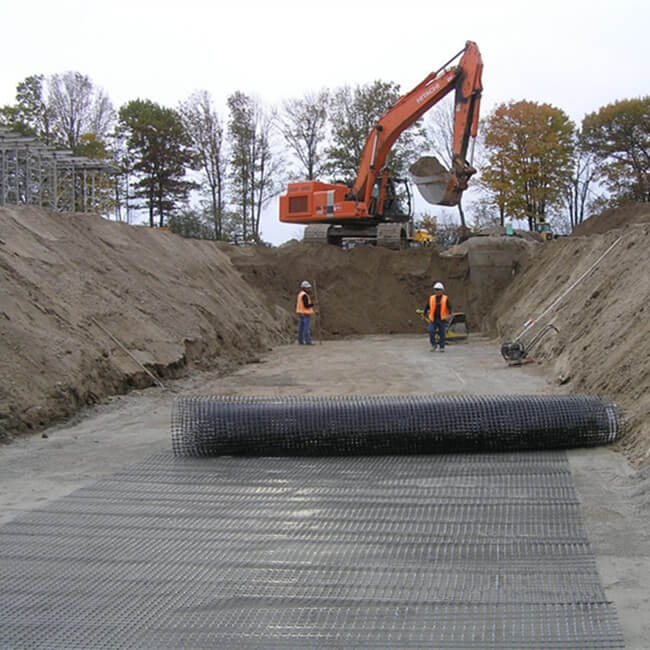

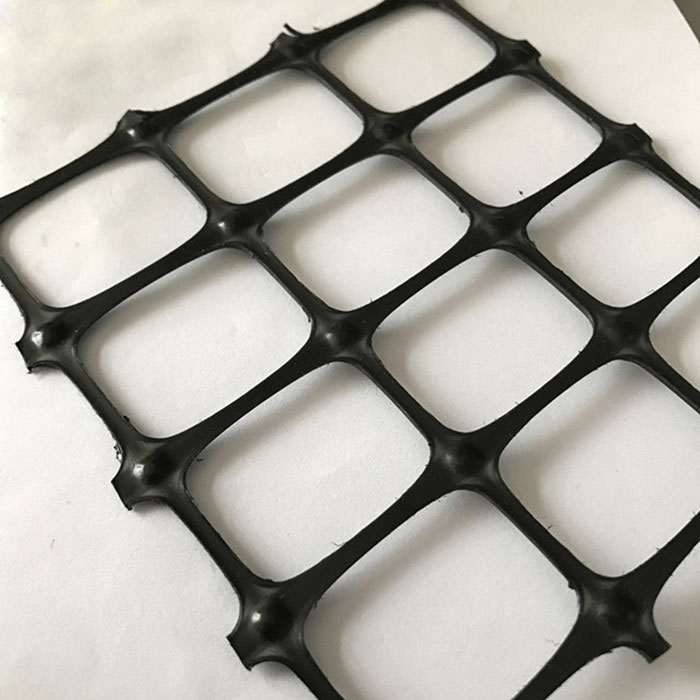

PP Plastic Biaxial Geogrid has the characteristics of high tensile strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance, long service life etc., can be widely used in maintenance of the old cement pavement, airport runway, dam, the river bank, slope protection, bridge engineering and fields of enhancement processing and so on, can strengthen for the road surface, reinforcing, prevent pavement fatigue crack, hot cold expansion crack and the reflection crack, and can scatter pavement bearing stress, extend the service life of pavement, high tensile strength and low elongation, no long-term creep, physical and chemical stability, resistance to fatigue cracking, resistance to high temperature rutting, low temperature shrinkage crack resistance, delaying and decreasing crack reflection.
Specification of PP Plastic Biaxial Geogrid:
Specification | Test Method | BX1515 | BX2020 | BX2525 | BX3030 | BX4040 | BX1100 | BX1200 | BX3030L | |||||||||
Index | unit | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | |
Ultimate Tensile strenth | D6637 | KN/m | 15 | 15 | 20 | 20 | 25 | 25 | 30 | 30 | 40 | 40 | 12.4 | 19.0 | 19.2 | 28.8 | 30 | 30 |
Aperture Size | mm | 39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
25 | 33 | 25 | 33 | 65 | 65 | |
Minimum Rib Thickness | mm | 1.0 | 0.8 | 1.5 | 1.1 | 1.8 | 1.4 | 2.2 | 1.7 | 2.5 | 2.0 | 1.0 | 0.8 | 1.4 | 1.27 | 1.7 | 1.5 | |
Tensile Strength @2% Strain | D6637 | KN/m | 6 | 6 | 7 | 7 | 9 | 9 | 11 | 11 | 15 | 15 | 4.1 | 6.6 | 6 | 9 | 11 | 11 |
Tensile Strength @5% Strain | D6637 | KN/m | 11 | 11 | 13 | 13 | 17 | 17 | 21 | 21 | 27 | 27 | 8.5 | 13.4 | 11.8 | 19.6 | 21 | 21 |
Junction Efficiency | % | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | |||||||||
Flexural Stiffness | D7748 | mg-cm | 690,000 | 780,000 | 860,000 | 960,000 | 1,000,000 | 250,000 | 750,000 | 960,000 | ||||||||
Aperture Stability | m-N/deg | 0.30 | 0.50 | 0.62 | 0.75 | 0.85 | 0.32 | 0.65 | 0.75 | |||||||||
Resistance to Installation Damage | %SC/%SW/%GP | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | |||||||||
Resistance to Long Term Degradation | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||||||||
Resistance to UV Degradation | D4355 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
Minimum Cabon Black | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
Unit Weight | g/m2 | 175-210 | 220-250 | 260-300 | 300-340 | 450-500 | 180-210 | 280-310 | 320-360 | |||||||||
Rolls Dimensions (Length, Width) | m | 100*3.95 100*5 100*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 | 75*3.95 75*5 75*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |

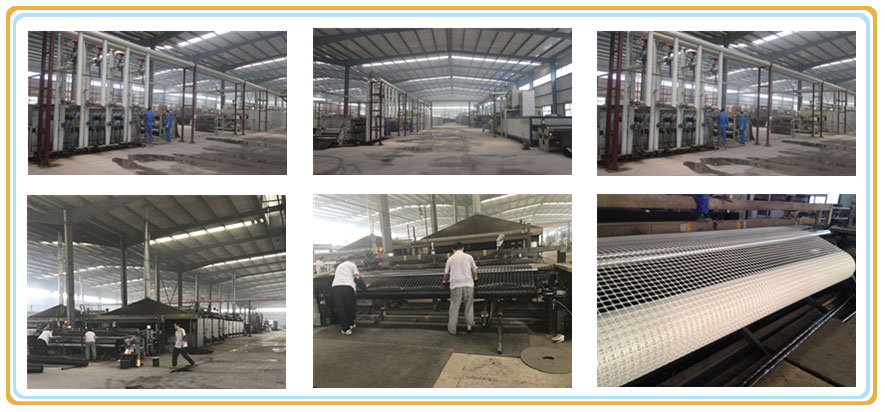

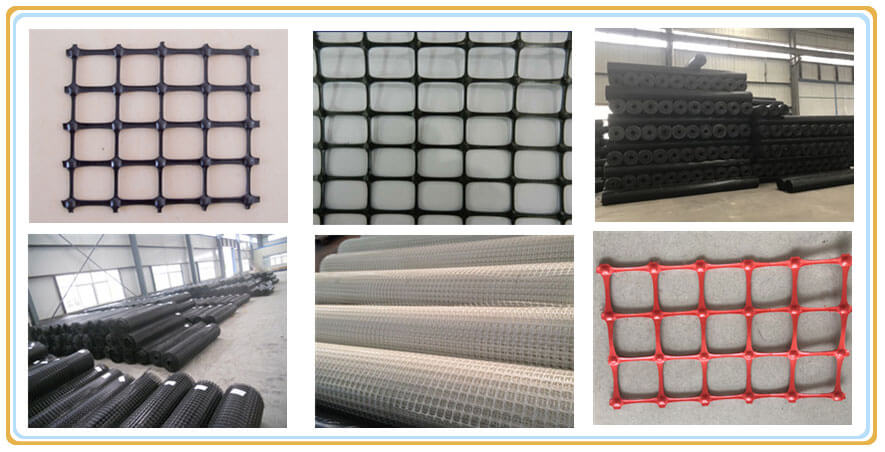

Production of PP Plastic Biaxial Geogrid:

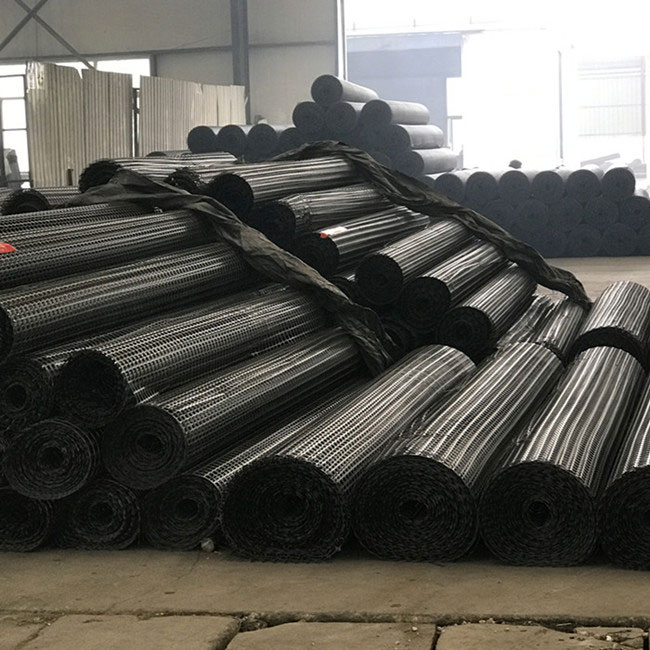

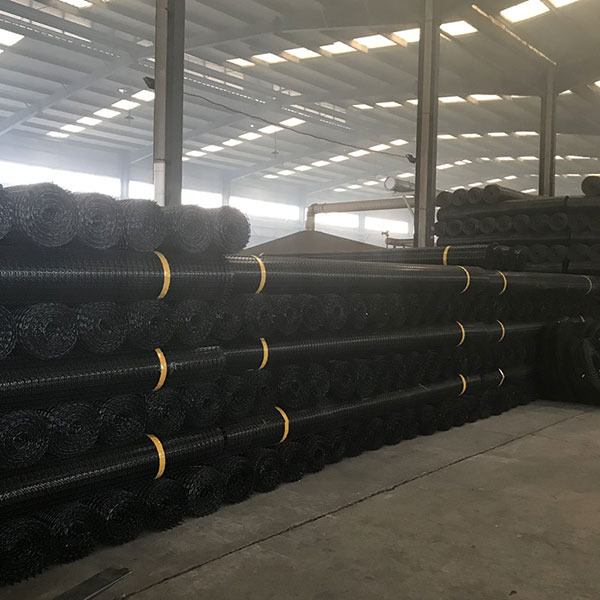

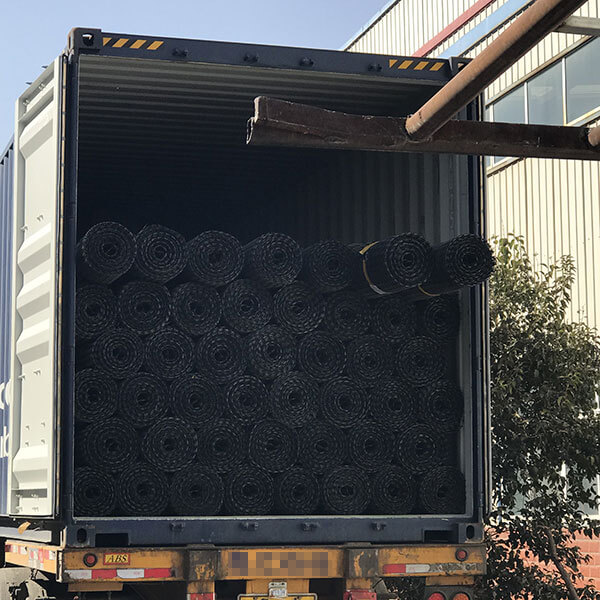

Packing & Shipping:
Our Company
Feicheng Lianyi Engineering Plastic Co., Ltd has been a leader market for more than 16 years in manufacturing geosynthetics material for domestic and export markets.
The products we product are Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid, Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with light weight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid (PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE eomembrane, HDPE Geocell, Mining Geogrid, Geonet, PP Woven Geotextile etc.
