PET Uniaxial Geogrid
Quantity
Inquiry

PET Biaxial Geogrid

    Description

    PET unaixial geogrid are made from knitted polyester fibres, which form the meshes of the geogrid.

    Description of PET Uniaxial Geogrid

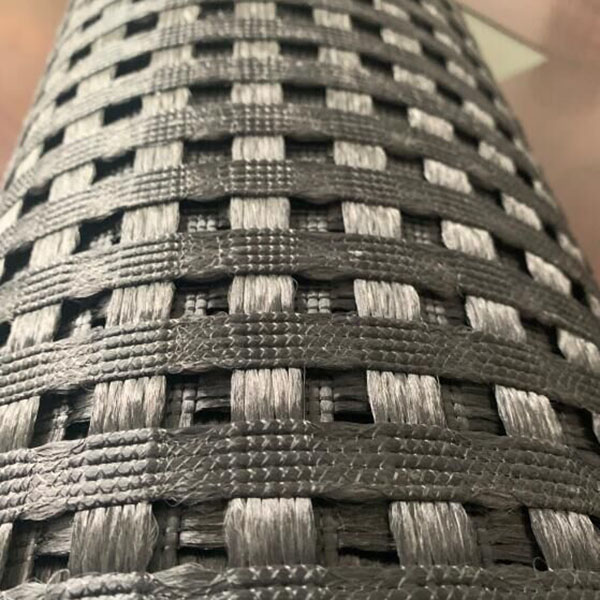

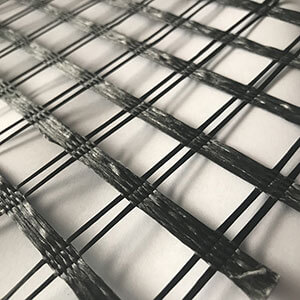

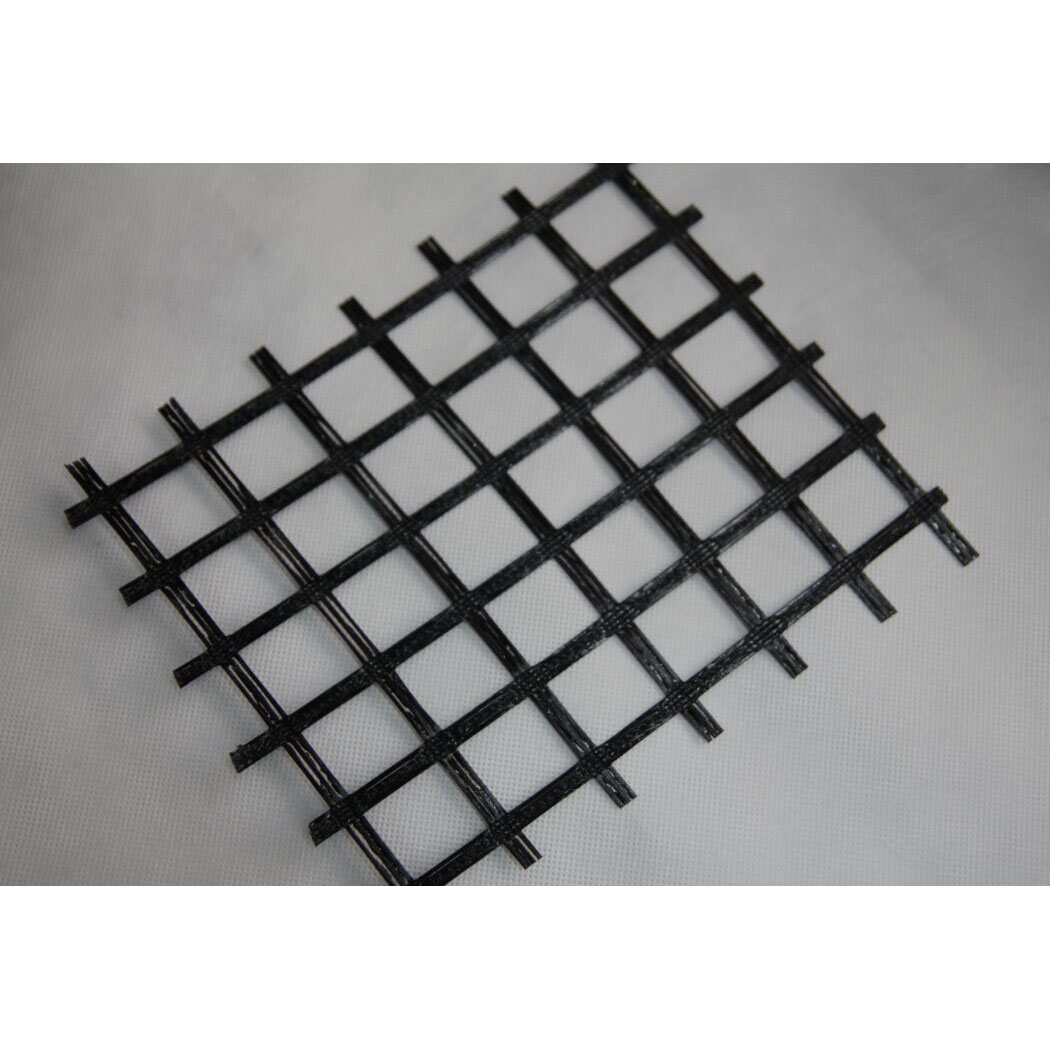

    PET Uniaxial Geogrid is woven by high-tenacity, multifilament polyester yarns and coated with durable polymer which can provide best resistance of UV and durability.

    1. Raw materials: Polyester
    2. Color: Black
    3. Tensile trength: 15-1500KN
    4. Mesh size: 25mm* 25mm(at request)
    5. Elongation: ≤13
    6. Width: 1-6m/roll
    7. Length: 50-100m/roll
    8. Packing: PE film
    9. Certificate: ISO9001, CE, SGI, TRI

Specification of PET unaixial geogrid

Property Unit PET40-25 PET50-35 PET60-30 PET80-30 PET100-30 PET200-30 PET400-30 PET600-30
Ultimate Tensile Strength MD KN/m 40 50 30 30 30 30 30 30
CD KN/m 25 35 30 30 30 30 30 30
Elongation at maximum load MD % 13 13 13 13 13 13 13 13
CD % 13 13 13 13 13 13 13 13
Aperture size mm 12.7×12.7 25.4×25.4 40×40
Temperature Resistant ℃ -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resin Content ℃ ≦30 ≦30 ≦30 ≦30 ≦30 ≦30 ≦30 ≦30
Glue Type PVCsoakage
resistance to installation damage %SC/%SW/%GP 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90
resistance to long term degradation % 100 100 100 100 100 100 100 100
Roll Length m 50-200m
Roll Width m 1-6m
Property Unit PET40-25 PET50-35 PET60-30 PET80-30 PET100-30 PET200-30 PET400-30 PET600-30
Ultimate Tensile Strength MD KN/m 40 50 30 30 30 30 30 30
CD KN/m 25 35 30 30 30 30 30 30
Elongation at maximum load MD % 13 13 13 13 13 13 13 13
CD % 13 13 13 13 13 13 13 13
Aperture size mm 12.7×12.7 25.4×25.4 40×40
Temperature Resistant ℃ -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resin Content ℃ ≦30 ≦30 ≦30 ≦30 ≦30 ≦30 ≦30 ≦30
Glue Type PVCsoakage
resistance to installation damage %SC/%SW/%GP 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90
resistance to long term degradation % 100 100 100 100 100 100 100 100
Roll Length m 50-200m
Roll Width m 1-6m
