PET Biaxial Geogrid
Quantity
Inquiry

PET Biaxial Geogrid

    Description

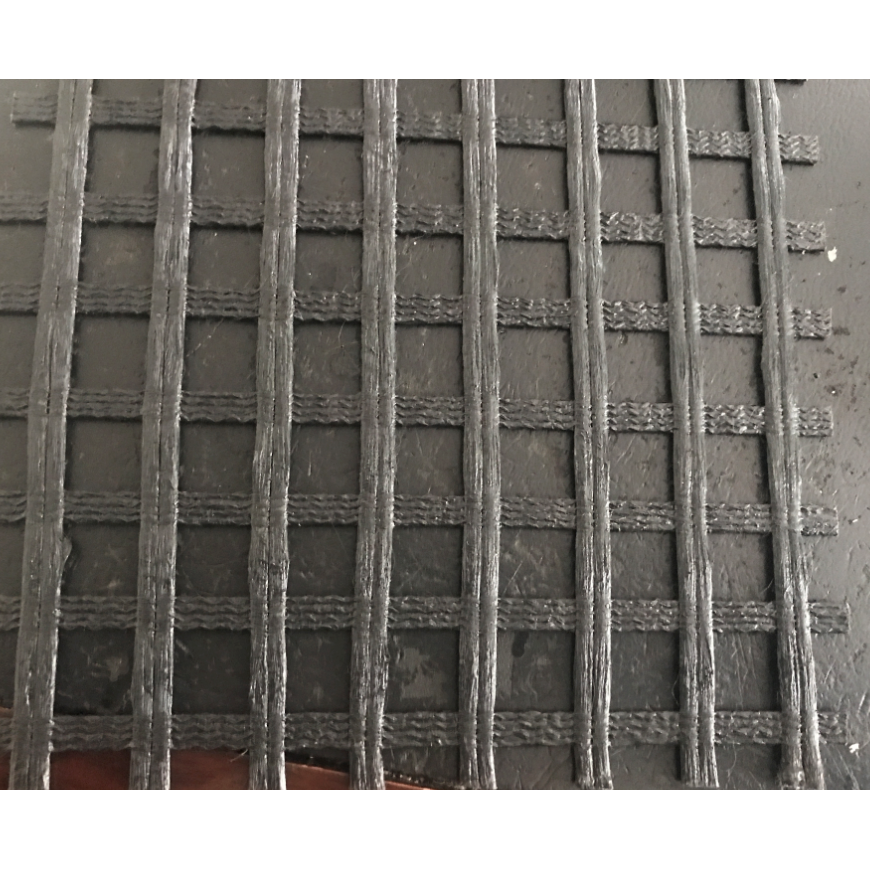

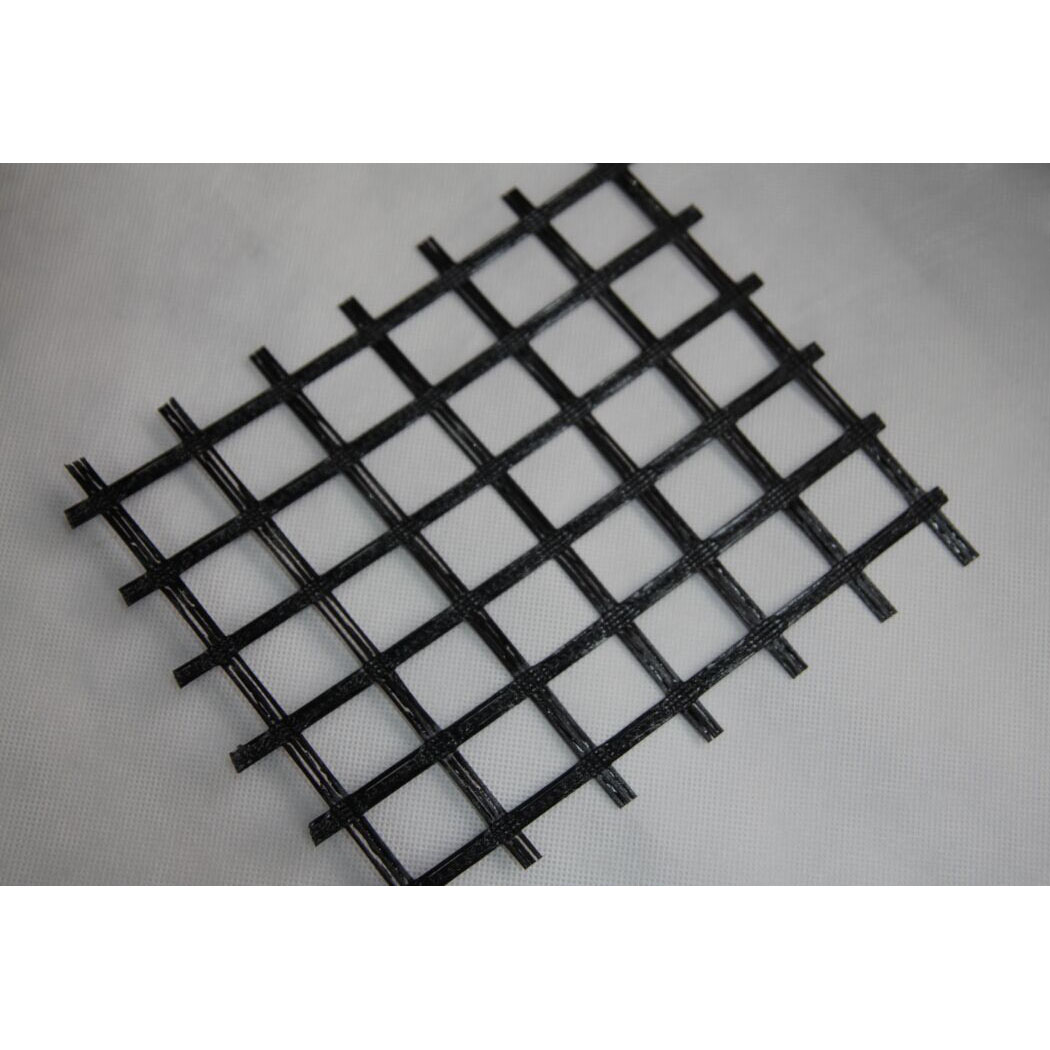

    PET Biaxial Geogrid is ideal for reinforcing retaining walls slopes, and piled embankments.

    Description of PET Biaxial Geogrid

    PET Biaxial Geogrid is created through interlacing, usually at right angles, two or more yarns or filaments. Exterior of PET Grid is coated with polymer or nontoxic substance material for UV, acid and alkali resistance and prevents the bio-decomposition.

Specification of PET Biaxial Geogrid

Property Unit PET20-20 PET30-30 PET40-40 PET50-50 PET60-60 PET80-80 PET100-100 PET400-400
Ultimate Tensile Strength MD KN/m 20 30 40 50 60 80 100 400
CD KN/m 20 30 40 50 60 80 100 400
Elongation at maximum load MD % 13 13 13 13 13 13 13 13
CD % 13 13 13 13 13 13 13 13
Aperture size mm 12.7×12.7 25.4×25.4 40×40
Temperature Resistant ℃ -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resin Content ℃ ≦30 ≦30 ≦30 ≦30 ≦30 ≦30 ≦30 ≦30
Glue Type PVCsoakage
resistance to installation damage %SC/%SW/%GP 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90 95/93/90
resistance to long term degradation % 100 100 100 100 100 100 100 100
Roll Length m 50-200m
Roll Width m 1-6m

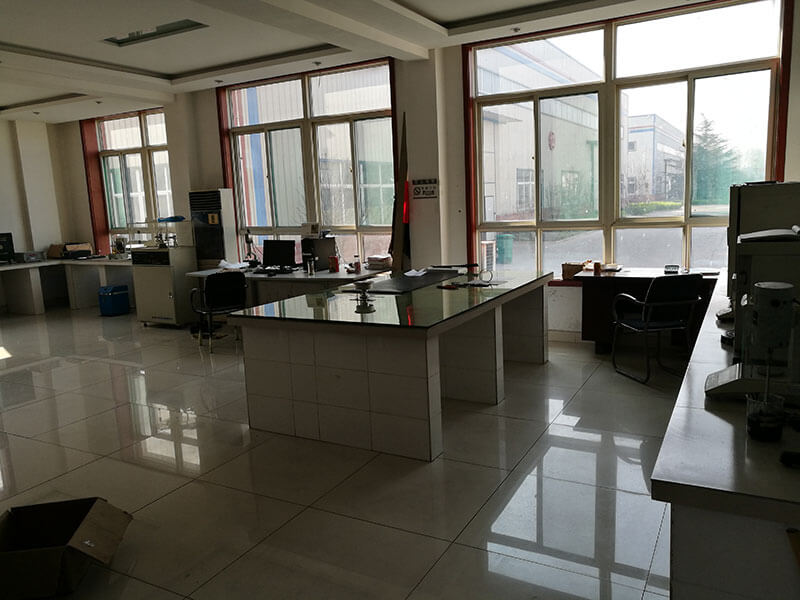

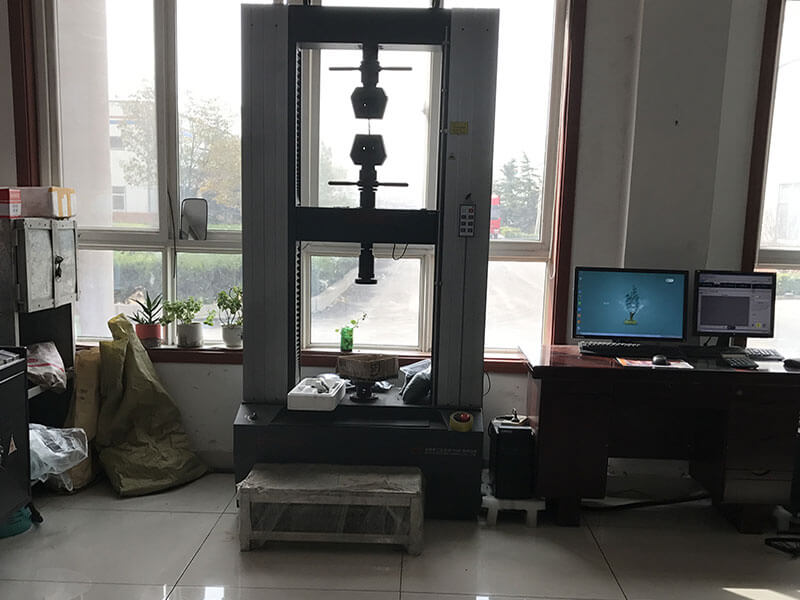

Quality Control

Quality Control
