PVC Coated Polyester Geogrid
Quantity
Inquiry

PVC Coated Polyester Geogrid

    Description

    High strength polyester industrial yarns warp knitting into grid base fabrics, then dipped with PVC coating.

    Description of PVC Coated Polyester Geogrid

    PVC Coated Polyester Geogrid is high tenacity multi-filament PET yarn knitting to the grid fabric with various mesh sizes, tensile strength from 20 to 1000kN/m. Exterior of PET Geogrid coated with PVC or modified polymer mixture for UV, acid and alkali resistance prevents the bio-decomposition. It’s a precision geogrids that offers superior junction strength and high coefficient of soil interaction for soil stabilization.

Specification of PVC Coated Polyester Geogrid:

Property Unit PET20-20 PET30-30 PET40-40 PET50-50 PET60-60 PET80-80 PET100-100 PET400-400
Ultimate Tensile Strength MD KN/m 20 30 40 50 60 80 100 400
CD KN/m 20 30 40 50 60 80 100 400
Elongation at maximum load MD % 13 13 13 13 13 13 13 13
CD % 13 13 13 13 13 13 13 13
Aperture size mm 12.7×12.7 25.4×25.4 40×40
Roll Length m 50-200m
Roll Width m 1-6m
Property Unit PET40-25 PET50-35 PET60-30 PET80-30 PET100-30 PET200-30 PET400-30 PET600-30
Ultimate Tensile Strength MD KN/m 40 50 60 80 100 200 400 600
CD KN/m 25 35 30 30 30 30 30 30
Elongation at maximum load MD % 13 13 13 13 13 13 13 13
CD % 13 13 13 13 13 13 13 13
Aperture size mm 12.7×12.7 25.4×25.4 40×40
Glue Type PVC soakage
Roll Length m 50-200m
Roll Width m 1-6m

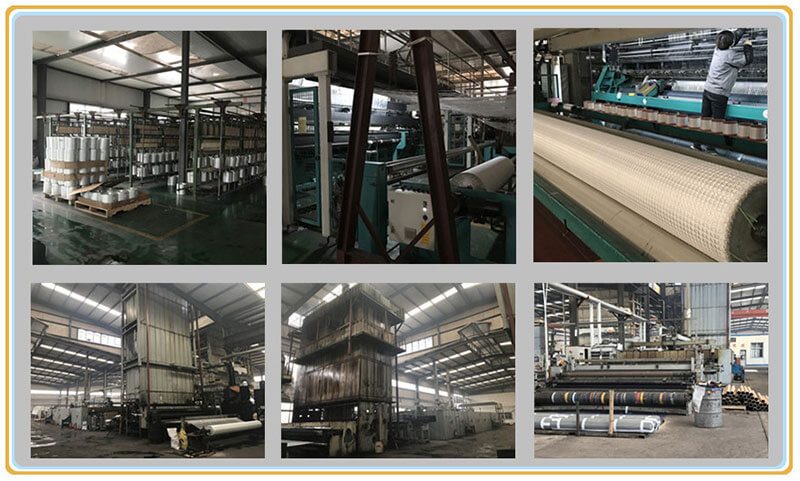

Production of PVC Coated Polyester Geogrid

Our Company

Feicheng Lianyi Engineering Plastic Co., Ltd has been a leader market for more than 16 years in manufacturing geosynthetics material for domestic and export markets.

The products we product are Fiberglass Geogrid with PVC Coating, PVC Coated Polyester Geogrid, Extruded PP Biaxial Geogrid, Extruded Polyethylene Geogrid, PP Plastic Uniaxial Geogrid, PET Laser Welded Geogrid, Polyester geogrid Composite with Nonwoven geotextile, Combined Geogrid with Geotextile, Fiberglass Composite Geotextile, Heat Bonded Geogrid With Geotextile, PP/PET Woven Geotextile, PP Needle punched Nonwoven Geotextile, perforated Geocell, waterproofing geomembrane hdpe, LDPE impermeable Geomembrane, geocomposite drainage membrane, Three Dimensional HDPE Geonet, Three Dimensional Composite drainage network.etc
