Glass Fiber Grid
Quantity
Inquiry

Glass Fiber Grid

    Description

    Providing High Quality Products, Free Estimate Available, Knowledgeable Customer Service Available. 20kN/m to 600kN/m Glass Fiber Grid with High Strength for Retaining Wall from China manufacturer.

    Product Details

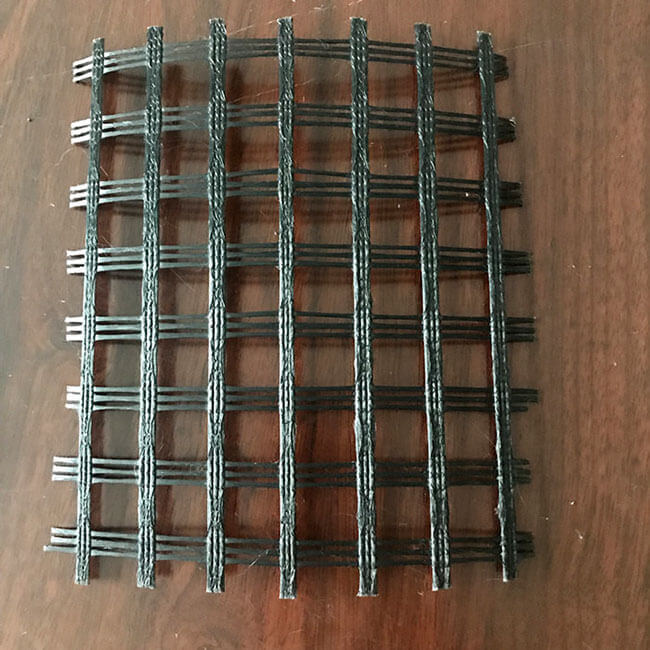

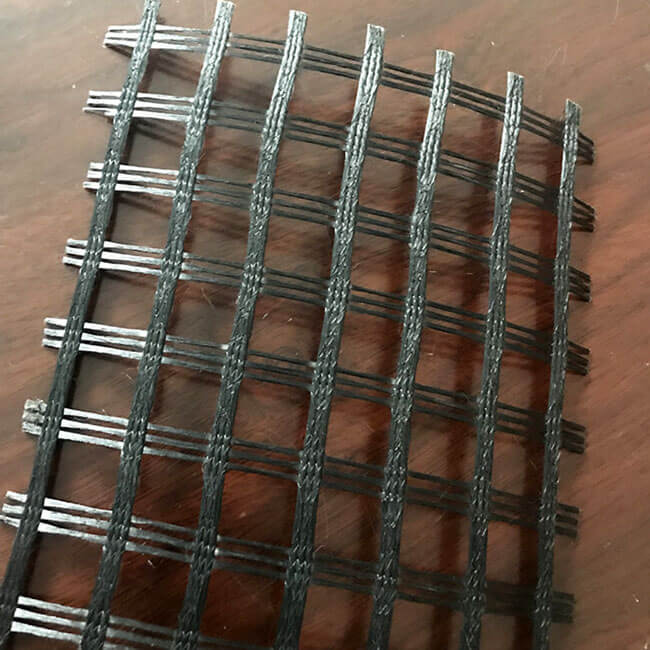

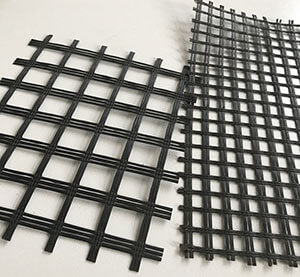

    Glass Fiber Grid is manufactured from creep resistant, high tenacity fiberglass yarn and warp knitting into grid based grey fabrics, after coated with Oil PVC / Water PVC / Bitumen / SBR / Acrylic acid coating.

Product Features:

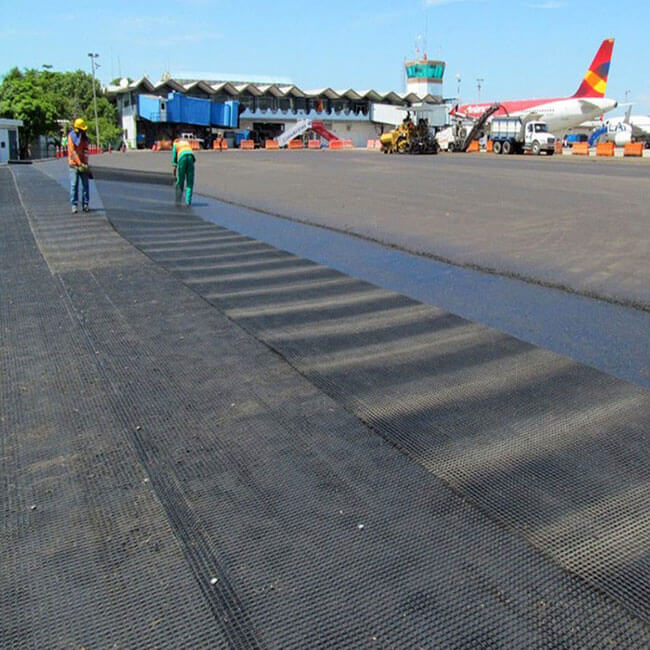

1. Maintenance of old asphalt road reinforcement of asphalt pavement.

2. Converting old cement concrete road into composite road.

3. Restraining reflection cracking caused by block shrinkage.

4. Preventing and controlling the cracking caused by new and old combination and uneven settlement.

5. Road extension.

6. Reinforcement of soft soil foundation and overall strength of roadbed.

Specification of Glass Fiber Grid:

Specification 30/30KN 50/50KN 70/70KN 100/100KN 200/200KN
Tensile Strength(KN/m) Longitudinal 30 50 70 100 200
Horizontal 30 50 70 100 200
Break Elongation Ratio(%) Longitudinal 3 3 3 3 3
Horizontal 3 3 3 3 3
Mesh Size(mm) 12.7*12.7,25.4*25.4,40*40,etc
Breadth(m) 1-6

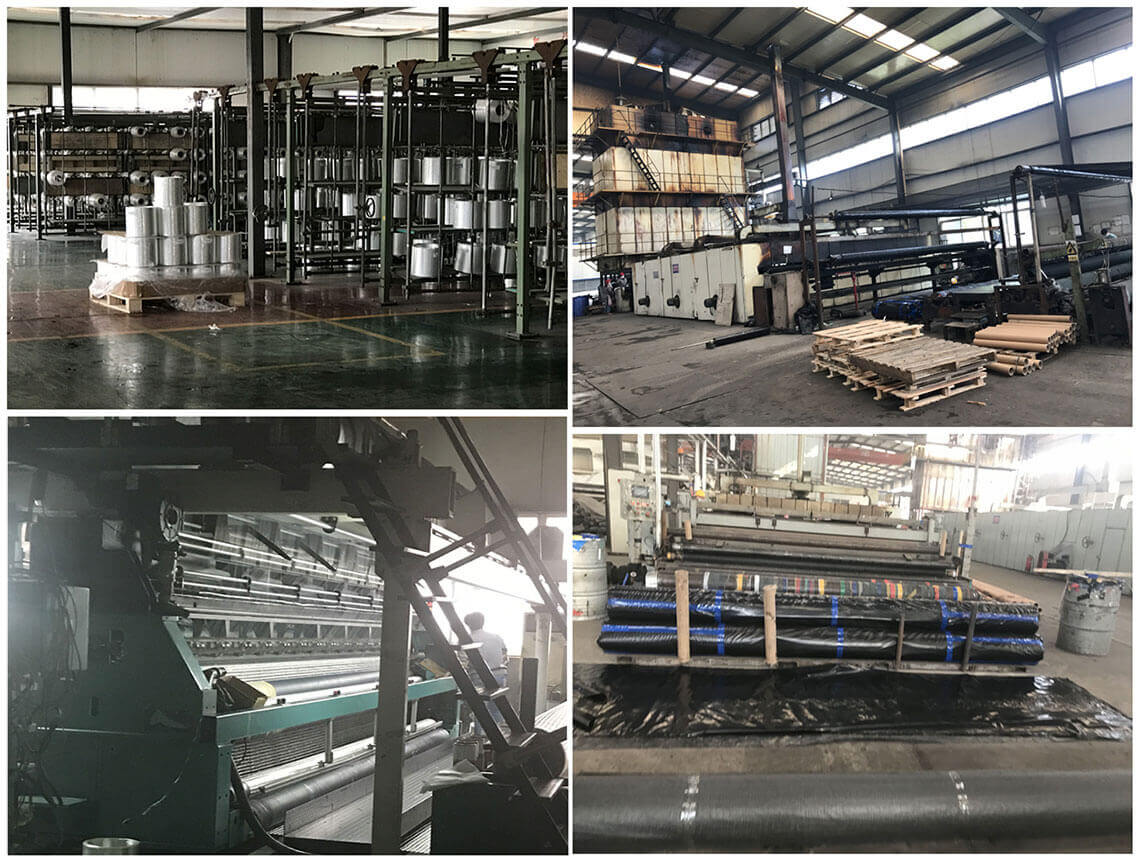

Production of Glass Fiber Grid:

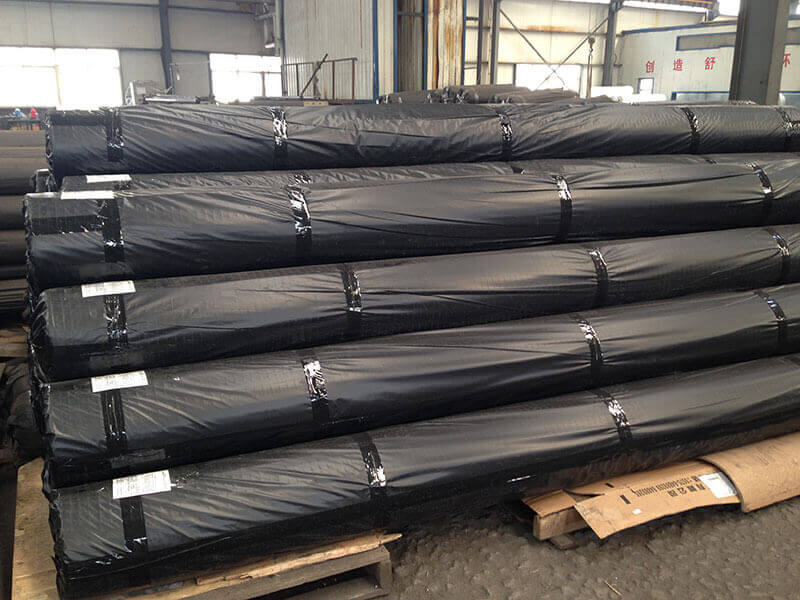

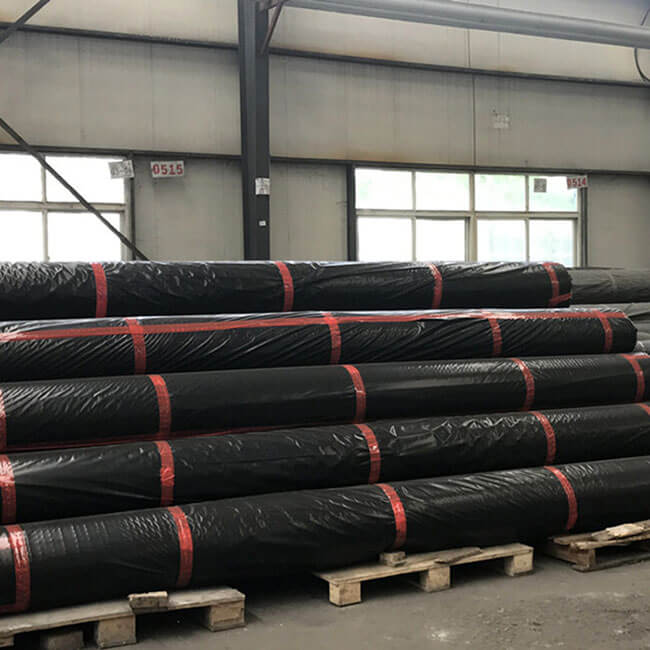

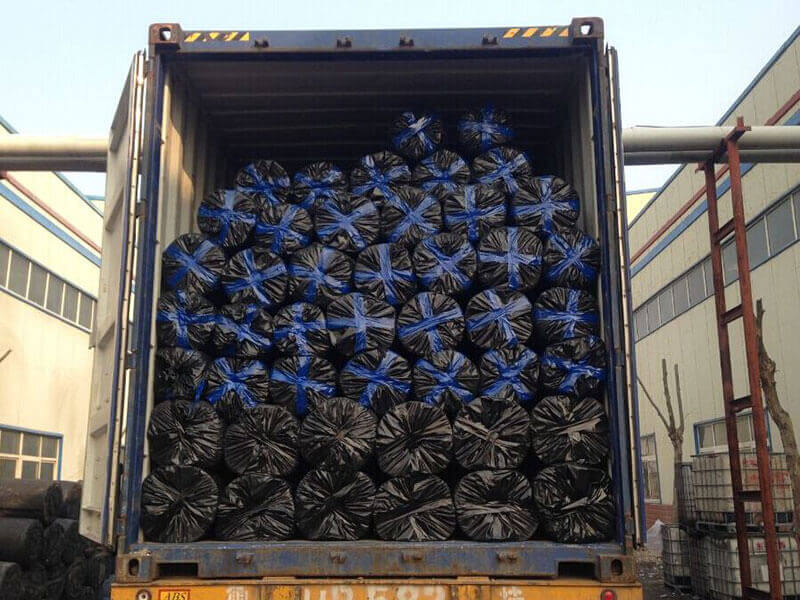

Packing & Shipping:

Glass Fiber Grid

Lianyi is the professional geosythetic products manufacturer, supplier, wholesaler and exporter dedicated in supplying one stop geosynthetic products and services to worldwide customers since its foundation in 2002. We have over 600professional staffs and 30,000 square meters manufacturing factory. Lianyi had been specializing in delivering one stop geosynthetics products and solutions to worldwide customers since its foundation in 2002. Lianyi had provided many types of effective and state of the geogrid, geotextiles, geocells, geomembrane, drainage boards, to over 100 countries.Lianyi is not only manufacturing best quality geosynthetics products but also providing professional design and nstallation service. OEM, ODM, custom development and fabrication are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible. We had been certificated by the CE, ISO9001, ISO14001, SGI, TRI, OHSAS18001, etc.
