Fiberglass Geogrid with PVC Coating
Quantity
Inquiry

Fiberglass Geogrid with PVC Coating

    Description

    We supply high quality fiberglass geogrid with PVC coating with competitive price. It have high tensile strength, low elongation.

    Product Details

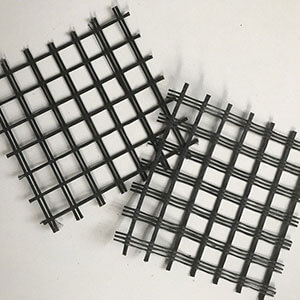

    Fiberglass Geogrid are a kind of reticular structural material with high alkali-free glassfiber. It withstands high and low temperatures and can resist corrosion. Fiber geogrid can not only decrease the cost of constructionbut also prolong the service life of the pavement.

Product Features:

1. Light weight, high tensile strength, high modulus, low elongation and good toughness.

2. Corrosion resistance, no long-term creep, long life span.

3. Good physical and chemical stability and good thermal stability.

4. Resistant to fatigue cracking, high-temperature track and low temperature shrinkage cracking.

Specification of Asphalt Reinforcement Fiberglass Geogrid:

Property TGSB30-30 TGSB50-50 TGSB60-60 TGSB80-80 TGSB100-100
Ultimate Tensile Strength (KN/m) MD 30 50 60 80 100
CD 30 50 60 80 100
Elongation (%) MD 3
CD 3
Mesh Size (mm) 12.7*12.7, 25.4*25.4, 40*40, etc
Roll Width (m) 1-6
Roll Length (m) 50-200

Property TGSB100-100 TGSB150-150 TGSB160-160 TGSB200-200
Ultimate Tensile Strength (KN/m) MD 100 150 160 200
CD 100 150 160 200
Elongation (%) MD 3
CD 3
Mesh Size (mm) 12.7*12.7, 25.4*25.4, 40*40, etc
Roll Width (m) 1-6
Roll Length (m) 50-200

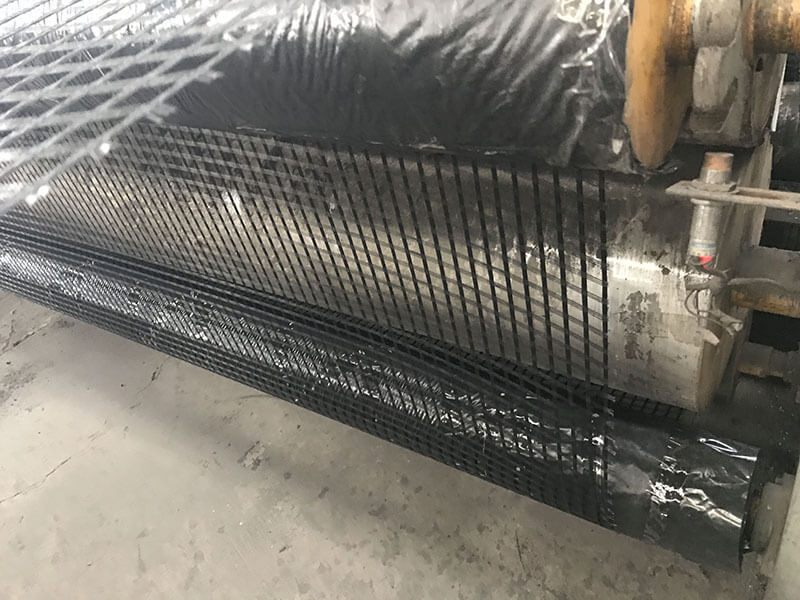

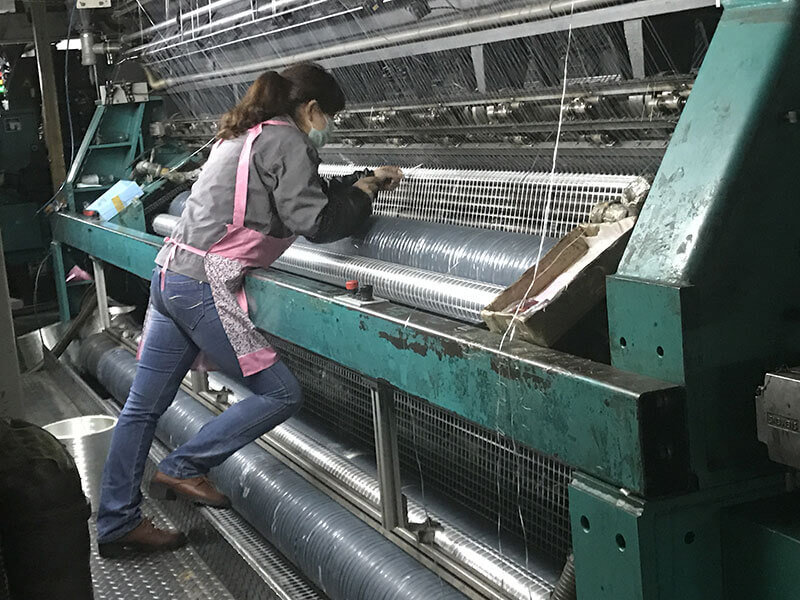

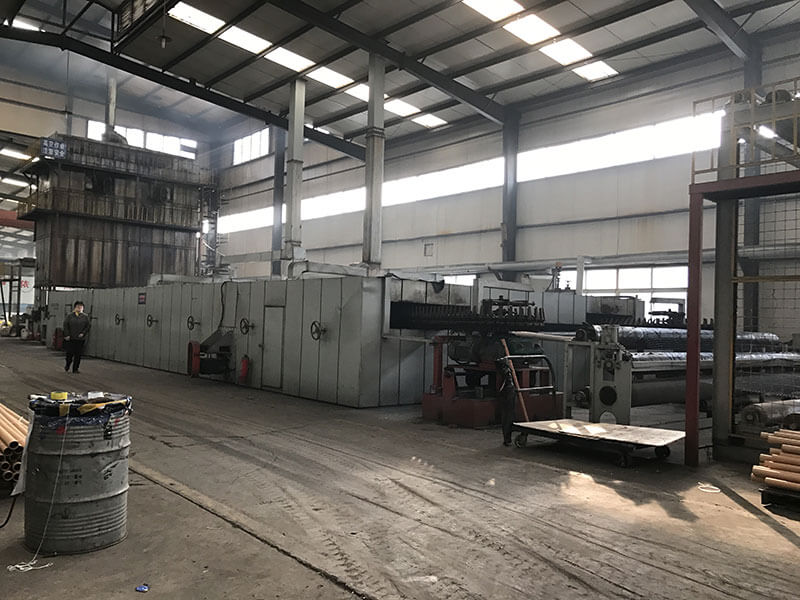

Production of Asphalt Reinforcement Fiberglass Geogrid:

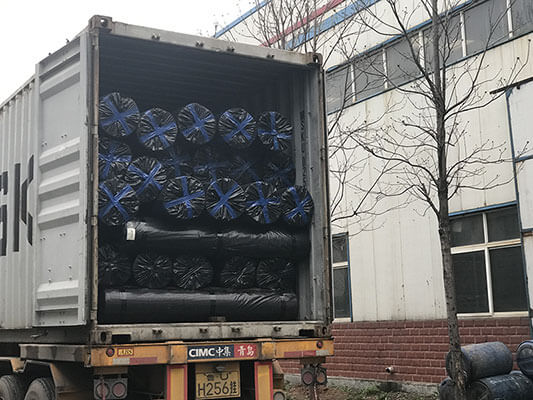

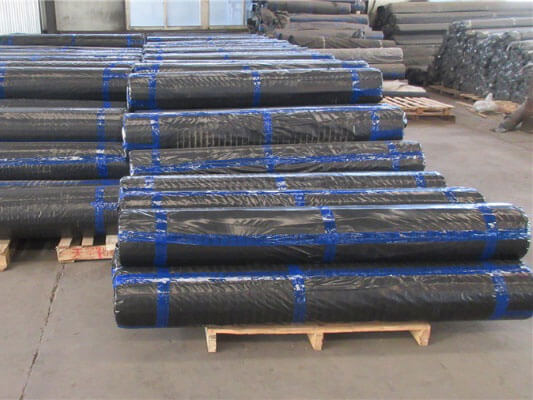

Packing & Shipping:

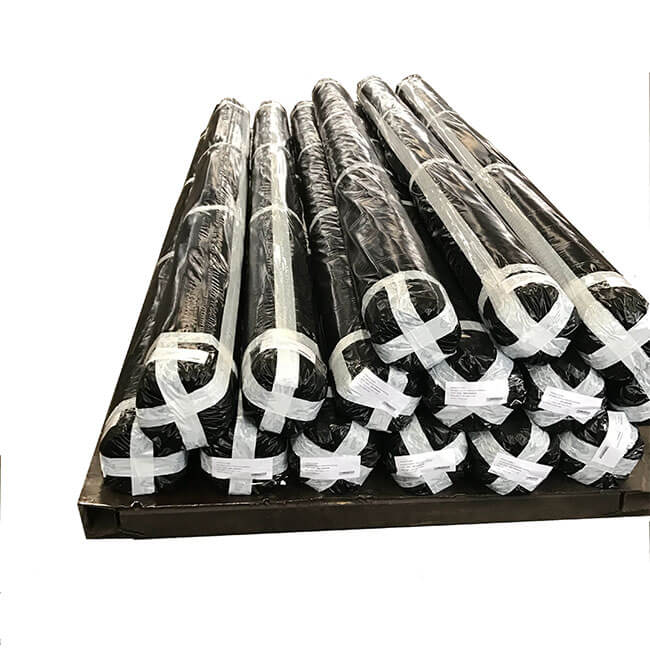

Packaging Details: PE films and colored tape. We provide OEM mark.

Our Service:

1. We can provide free factory similar sample and delivery charge at your side.

2. We can make sample with your design proposal at your cost.

3. The sample can be ready right after we have discussed the processing details and confirm your payment for it in 2-4 work days.it may be extension for some special or complicate ones.

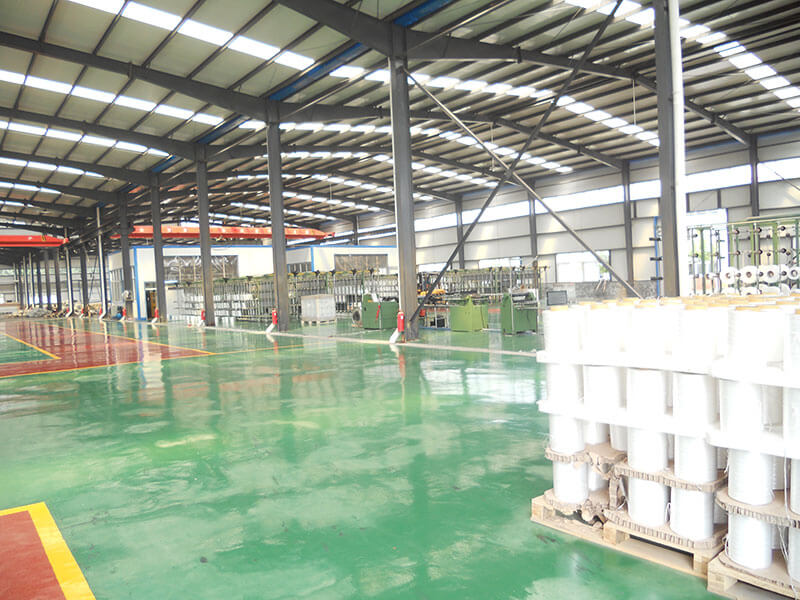

Our Company Information

Feicheng Lianyi Engineering Plastics Co., Ltd. is a comprehensive enterprise. Our business scope covers scientific research, development, manufacturing and sales of geosynthetic, plastic and fiberglass products.At present, our company owns fixed assets of RMB800 million, with 581 staff members, 48 percent of who are graduated from domestic universities. We also have established long-term cooperation relationships with several research institutes, universities and designing institutes. Our technical capability is very abundant. Our annual output is about 150000 tons.
