Asphalt Reinforcement Fiberglass Geogrid
Quantity
Inquiry

Asphalt Reinforcement Fiberglass Geogrid

    Description

    We supply Asphalt Reinforcement Fiberglass Geogrid for 16 years.We are the biggest geosynthetics material manufacturer in China.

    Product Introduction

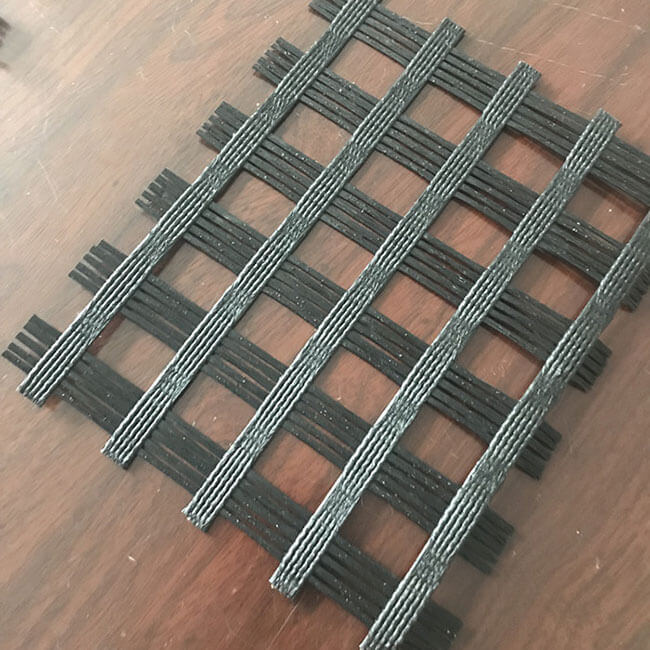

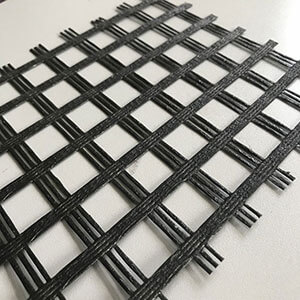

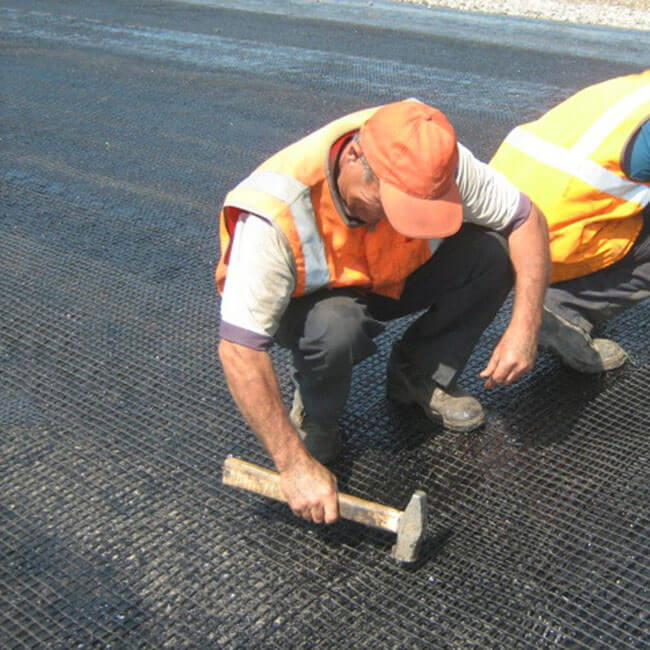

    Asphalt Reinforcement Fiberglass Geogrid is made from fiberglass filament and adopts unique woven technique. Then it is coated with a special solution. It is extensively used in asphalt pavement, soil stabilization and embankment reinforcement.

Feature of Asphalt Reinforcement Fiberglass Geogrid:

1. High tensile strength in warp and across directions

2. Low Elongation

3. High flexibility

4. High and low temperature resistance

Specification of Asphalt Reinforcement Fiberglass Geogrid:

Property TGSB30-30 TGSB50-50 TGSB60-60 TGSB80-80 TGSB100-100
Ultimate Tensile Strength (KN/m) MD 30 50 60 80 100
CD 30 50 60 80 100
Elongation (%) MD 3
CD 3
Mesh Size (mm) 12.7*12.7, 25.4*25.4, 40*40, etc
Roll Width (m) 1-6
Roll Length (m) 50-200

Property TGSB100-100 TGSB150-150 TGSB160-160 TGSB200-200
Ultimate Tensile Strength (KN/m) MD 100 150 160 200
CD 100 150 160 200
Elongation (%) MD 3
CD 3
Mesh Size (mm) 12.7*12.7, 25.4*25.4, 40*40, etc
Roll Width (m) 1-6
Roll Length (m) 50-200

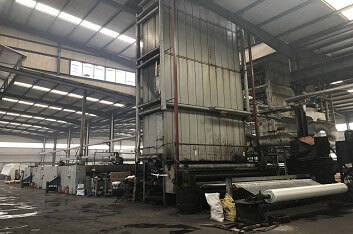

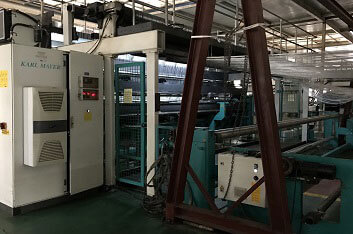

Production of Asphalt Reinforcement Fiberglass Geogrid:

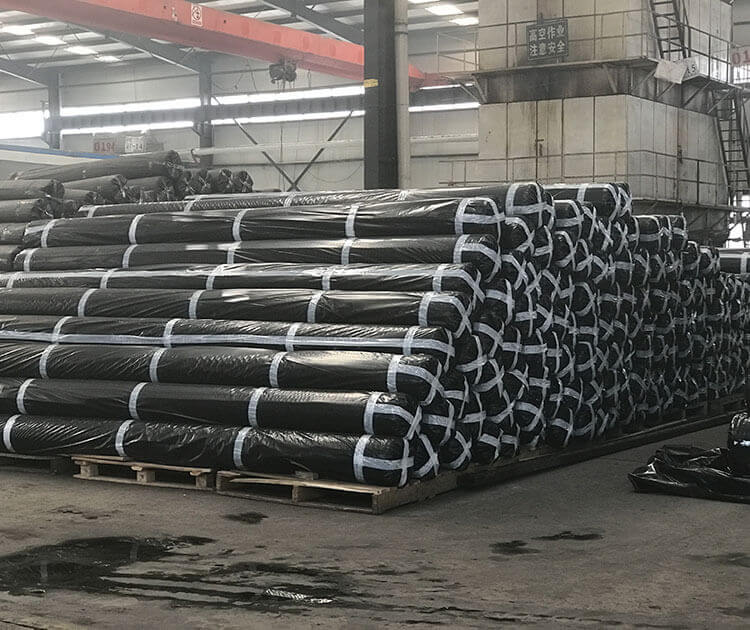

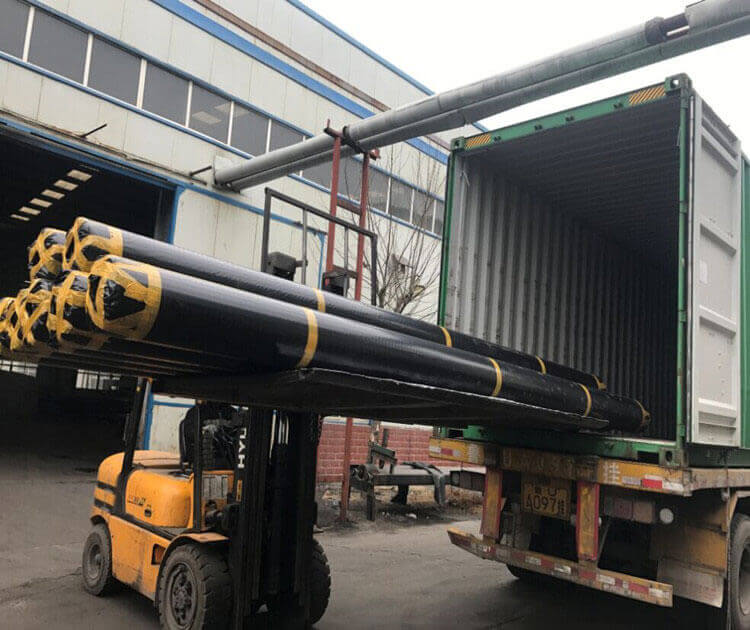

Packing & Shipping of Asphalt Reinforcement Fiberglass Geogrid:

Packaging Details: PE films or according to customer's requirements

Our Service:

◆ WE guarantee that we will reply your inquiry/email ASAP.

◆ WE guarantee that you will get higher-quality products from us.

◆ WE guarantee that Samples will be sent to you at the earliest.

◆ WE guarantee that you will be served professionally and efficiently.

◆ WE guarantee that the products will be delivered ASAP.

◆ WE guarantee that customized requirements will be accepted.

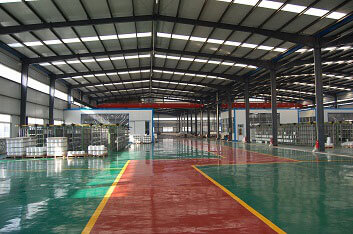

Our Company Information

Feicheng Lianyi Engineering Plastic Co., Ltd. has been a leader market for many years in manufacturing geosynthetics material for domestic and export markets.

The Geogrid products we produce are Asphalt Reinforcement Fiberglass Geogrid, Polyester Fiber Geogrid, PP BX Geogrid; HDPE Uniaxial Geogrid, PP Uniaxial Geogrid, PP Laser Welded Geogrid, Asphalt Reinforcement Geocomposite, Biaxial Geogrid With geotextile, Asphalt Reinforcement Fiberglass Geocomposite, PP Biaxial Geogrid Geocomposite, PP Woven Geotextile, PET/PP Needle punched Nonwoven Geotextile, Road Construction HDPE Geocell, hdpe geomembrane sheet,ldpe geomembrane liner, Composite Geomembrane with Nonwoven Geotextile, triplanar geonet, Tri Planar Geonet Composite with Geotextile, three-dimensional vegetation network, etc.
